Launch x431 Euro Pro 5 High-End Diagnostics Tool / Device
Launch x431 Euro Pro 5 High-End Diagnostics Tool / Device
The Launch X431 Euro PRO 5 Lite is a high-end professional diagnostic device, based on the latest Android OS 9.0

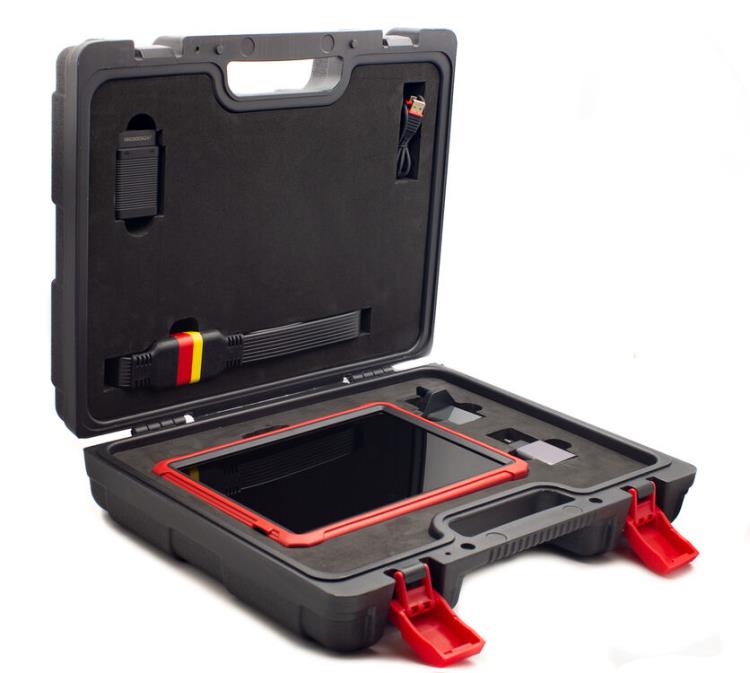

The Euro Pro 5 Lite inherits the hallmark Launch benefits of wide vehicle coverage, powerful test functions, accurate test data and numerous special functions. It comes in a robust carry case with just the necessary leads.
- The PRO 5 Lite supports the optional HD3 Truck module, and Launch ADAS system.
- The PRO 5 Lite comes with a two-year warranty, two-year software package.
- 'Euro' denotes the European Pro 5, beware of unofficial Asian spec imports.
- 'Lite ' denotes the 'stripped-down' tool, without HaynePro and legacy cables.
Generic Programmes:
- Demo
- EODB/OBD11
- ECUAID
- Austrian OBD*
Special reset functions:
- Brake Reset
- Oil/Service light reset
- Steering angle
- Battery Matching
- Brake Bleeding
- Electric throttle relearns
- TPMS reset
- DPF regeneration
- Adaptive front lighting reset (AFS)
- Crankshaft position learn
- Auto Gearbox adaption
- Immobiliser
- Injector coding
- Sunroof reset
- Suspension height setting
NB: not all functions are applicable to all models.
Launch 'Intelligent diagnostic' features automatic VIN recognition for over 70 manufacturers, automatically identifying the vehicle model and year of manufacture through the VIN number. Faster and more convenient than manual selection.
Diagnostic trouble codes (DTCs) are clearly displayed with a full description, it is possible with one click, to display the fault code information in many alternative languages.
Features include:
- Fuse and relay box locations and function overview
- Wiring diagrams for Engine management, ABS, ESP, A/C, SRS, doors, windows, exterior lighting
- Component locations and information
- Ground point locations
- Control unit locations
- Battery disconnection / reconnection procedures
- High-voltage circuit deactivation procures
- Highlight functionality to help trace wiring and component faults
Comprehensive data stream information can be displayed in different formats:
- Up to twelve different items of data can be displayed on screen together
- Four data streams can be overlaid for comparison
- Data can be displayed showing actual and standard values
- Record data when testing, for later review.
Create a clear diagnostic report showing the status of each ECU, can be saved as a screen shot or PDF, easily print or share.
Summary of the key features of the PRO 5 Lite
- Wi Fi and Bluetooth V5.0 for fast and reliable connectivity
- Comprehensive live data functions
- One click software update
- Numerous reset and service functions
- Launch UK exclusive, two-year software updates
- Support for remote diagnostics between workshops
- Launch UK two-year warranty support
Launch PRO 5 Lite tablet specifications
- OS: Android 9.0
- CPU: 1.8Ghz 8 core
- Internal memory: 3Gb
- Storage: 32Gb with 32GB micro SD card
- Screen: 10.1 1920X1200 full HD IPS
- Battery: 7000mAh
- Wi Fi: 2.4 and 5Ghz
- Cameras: front 5MP, Rear 8MP

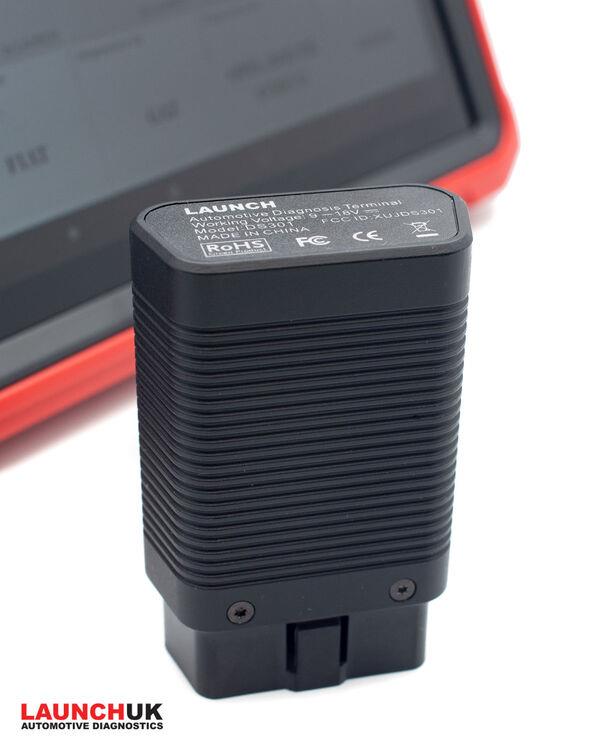

Launch PRO 5 diagnostic connector
- The latest DBS car connector
- Bluetooth V5.0
- Extended range
- Voltage: 12V – 18V
Additional Options Available Please Call
- Launch professional ADAS solution
- The Launch Heavy Duty Truck module HD3
- The Launch portable wi- fi printer
- The Launch VSP-600 Videoscope
Supplier Code: x431 Euro Pro 5
E and M Code: x431 Euro Pro 5
Price(Exc.VAT): £9999.99
+ *SC: £0
Quantity Available: 0
Minimum Postal Charge: Courier (Yodel)- Standard Parcels £6.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Diagnostic Tools
|
