Laser Tools Engine Timing Tool Kit - for VAG 1.0L, 1.2L, 1.4L 6586LT
Laser Tools Engine Timing Tool Kit - for VAG 1.0L, 1.2L, 1.4L 6586LT
This kit is for the FSI VAG petrol engines fitted to Audi, Seat, Skoda and Volkswagen models including the 1.4L cylinder on demand (CoD) engine. The CoD feature is used in the modern turbocharged petrol engine and is a cylinder cut-off system which reduces engine running from 4 cylinders to 2 cylinders when cruising – giving better miles per gallon.
Technical Bulletin:
It has come to our attention if component C734 is over tightened when fixed to the cylinder head, it will push the inlet camshaft inner shaft to one side resulting in a misfire and generating engine fault codes (ACT or COD error codes). To correct the fault the camshaft pulley and shaft assembly must be pushed back into its original alignment position.
- Applications include: Audi A1/A1 Sportback, A3 Sedan, A3 Cabrio, A3 Saloon, A3, A3 Sportback and Q3; Seat: Ibiza, Leon, Leon ST and Mii.
- Skoda applications: Citigo, Fabia SIII and Estate, Octavia III, Outdoor and Yeti.
- Volkswagen applications: Golf VII, Golf VI Cabrio, Golf VII and estate, Jetta, Passat, Polo, Golf SV, Sportsvan and Up!.

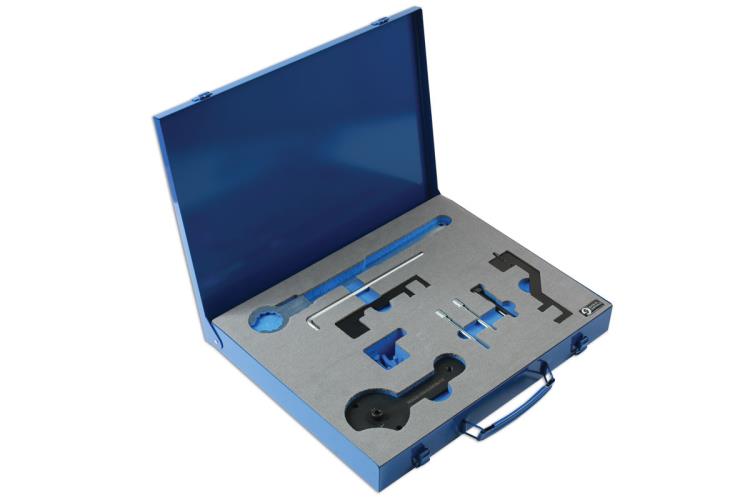

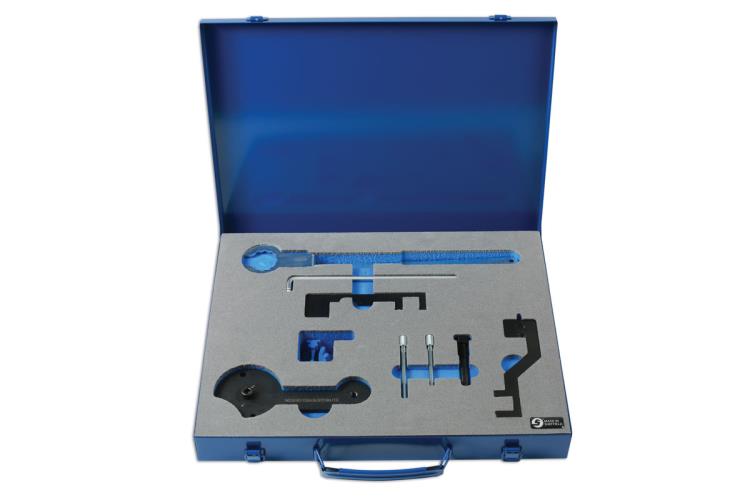

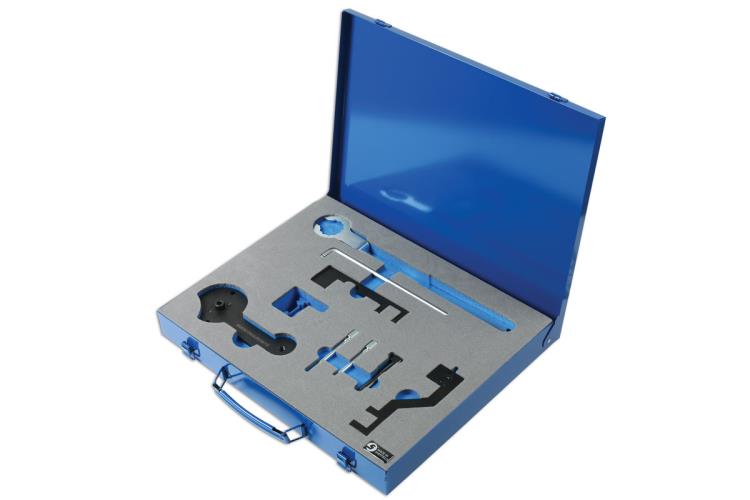

- Packed in EVA foam in a metal tray.
- Made in Sheffield to an EU Registered Design.

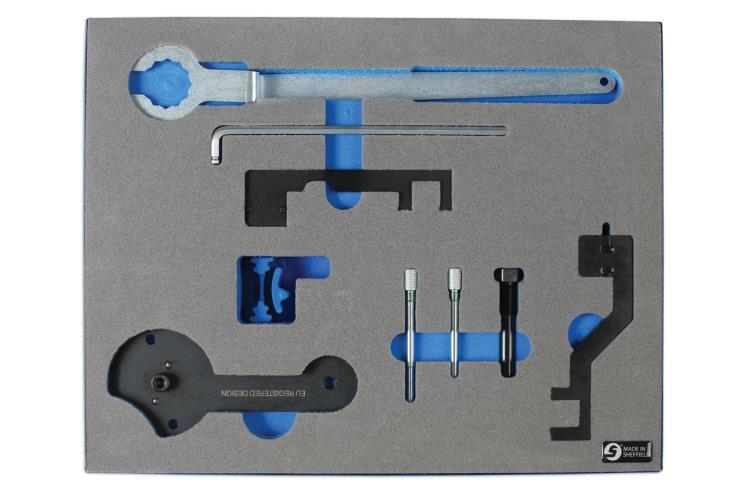

Set Contains
C439 Crankshaft Locking Pin
OEM Toolcodes
T10340
C450 Ball End Hex Key 6mm
OEM Toolcodes
T10264
C667 Camshaft Locking Tool
OEM Toolcodes
T10477
C668 Camshaft Timing Tool
OEM Toolcodes
T10476 T10476A
C685 Camshaft Drive Belt Tension Wrench
OEM Toolcodes
T10499 T10499A
C719 Camshaft Locking Tool
OEM Toolcodes
T10494
C734 Camshaft Positioning Bar
OEM Toolcodes
T10504
C735 Camshaft Bar - Short Pin
OEM Toolcodes
T10504/1
C736 Camshaft Bar - Long Pin
OEM Toolcodes
T10504/2
Applications
Audi
- Audi A1/A1 Sportback (8X) 2012 - 2019
- Audi A3 (8V) 2013 - 2019
- Audi A4 (8W2/8W5) 2015 - 2019
- Audi A5 (F5A/F53) 2016 - 2018
- Audi Q2 (GAB) 2016 - 2019
- Audi Q3 (8UB/8UG) 2014 - 2018
1,2 TFSI CJZA CYVB
1,4 TFSI CHPB CMBA CPWA CUKB CVNA CXSA CXSB CZCA CZCC CZDA CZDB
1,4 TFSI COD CPTA CZEA
Seat
- Seat Alhambra (711) 2015 - 2018
- Seat Ateca (KH7) 2016 - 2018
- Seat Ibiza (6J/6P) 2013 - 2017
- Seat Ibiza (KJ1) 2017 - 2019
- Seat Leon/Leon ST (5F1/5F5/5F8) 2012 - 2018
- Seat Mii (KF1) 2012 - 2019
- Seat Toledo (KG3) 2012 - 2019
1,0 TSI CHYA CHYB CHZJ CHZL CPGA
1,2 TSI CJZA CJZB CJZC CJZD CYVA CYVB
1,4 TFSI CHPA CMBA CPWA CXSA CZCA CZDA
1,4 TSI ACT CPTA CZEA
1,6 CWVA CWVB
Skoda
- Skoda Citigo (NF1) 2011 - 2019
- Skoda Fabia III (NJ3/NJ5) 2014 - on
- Skoda Kodiaq (NS7) 2017 - 2019
- Skoda Octavia III (5E3/5E5) 2013 - on
- Skoda Rapid/Spaceback (NH3/NH1) 2015 - 2019
- Skoda Superb III (3V3/3V5) 2015 - 2018
- Skoda Yeti/Outdoor (5L6/5L7) 2013 - 2017
1,0 MPI CHYA CHYB CPGA
1,2 TSI CJZA CJZB CJZC CJZD CYVA CYVB
1,4 TFSI CHPA CPWA CZCA CZDA
1,4 TSI ACT CZEA
1,6 CWVA CWVB
Volkswagen
- Volkswagen Beetle (5C1/5C7) 2015 - 2016
- Volkswagen Caddy/Caddy Maxi (SAx) 2015 - on
- Volkswagen Golf VI Cabrio (517) 2013 - 2016
- Volkswagen Golf VII (5G1) 2012 - 2017
- Volkswagen Golf Sportsvan (AM1) 2014 - 2018
- Volkswagen Jetta (162/163) 2012 - 2018
- Volkswagen Passat/CC (3G2/3G5/358) 2014 - 2019
- Volkswagen Polo (6R1/6C1) 2012 - 2018
- Volkswagen Scirocco (138) 2014 - 2018
- Volkswagen Sharan (7N2) 2015 - 2018
- Volkswagen Tiguan (5N1/5N2) 2015 - 2016
- Volkswagen Tiguan (AD1) 2016 - 2018
- Volkswagen Touran (5T1) 2015 - 2019
- Volkswagen Up! (121/122) 2011 - 2020
1,0 CHYA CHYB CPGA DAFA
1,2 TSI CJZA CJZB CJZC CJZD CYVA CYVB CYVD
1,4 TSI CHPA CMBA CPVA CPVB CPWA CRJA CUKB CUKC CXSA CZCA CZDA CZDB
1,4 TSI ACT CPTA CZEA
1,6 CWVA CWVB
Supplier Code: 6586LT
E and M Code: 6586LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Engine Timing Tools
|
