Laser Tools Cambelt Timing Tool Kit - for Ford 1.0 GTDi 6952LT
Laser Tools Cambelt Timing Tool Kit - for Ford 1.0 GTDi 6952LT

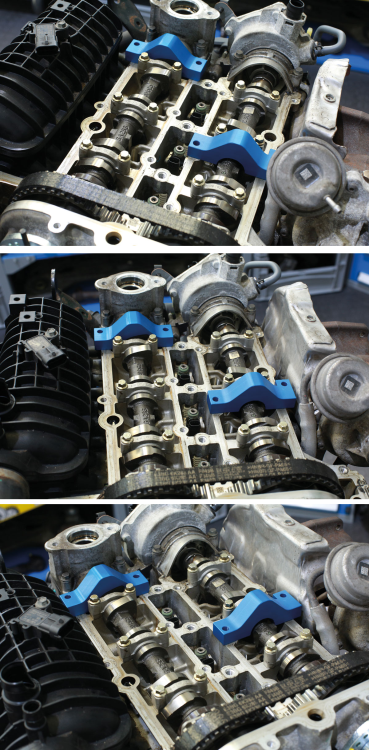

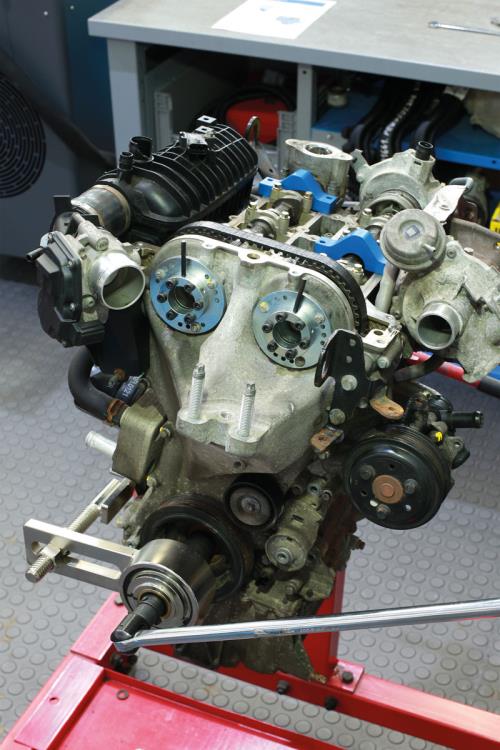

Developed to lock the engines of the vehicles listed in their 'timed' position so that the cambelt can be safely removed and replaced. Whilst being equivalent to the OEM tools required for the engines listed, the cam-locking blocks have been specially designed to be quicker and much simpler to use than the OEM tooling. NOTE: for 1.1L engines, please use Laser timing tool Part No. 7828.
- Applications: Ford 1.0L 3 cylinder turbocharged EcoBoost engine from 2012.
- GTDi engines found in Ford B-Max, C-Max, Fiesta, Focus, Grand C-Max and Transit Connect.
- Equivalent to OEM 303-732, 303-1054, 303-1602, 303-1603, 303-1604, 303-1605/1* and 303-1605/2*. NB * in 6952 for 1.0L EcoBoost only.
- Where the VCT pulleys require removing or setting, the additional kit Part No. 6291 will be required also Part No 7317 and Part No 7318 for removing the crankshaft pulley.
- Made in Sheffield. Camshaft locking blocks are an EU Registered Design.

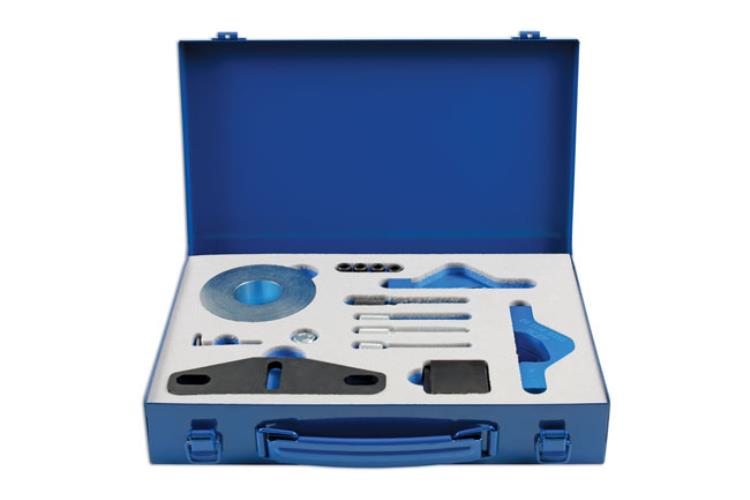

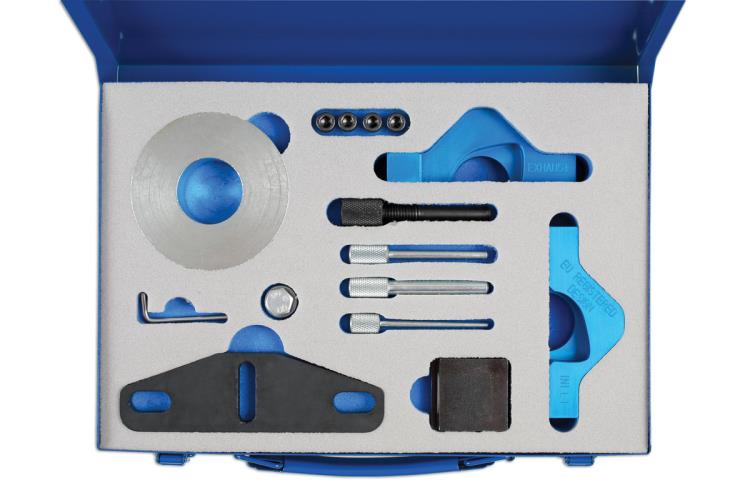

Set Contains
C089 Crankshaft Pulley Alignment Pin
OEM Toolcodes
- 0132AB
- 0178D
- 0194A
- 077440010400
- 1.860.617.000
- 11 9 790
- 21-260
- 303-732
- 4527 TS2
- 49 JE02 018
- 5711 TD
- 99360608
- 999 7169
C101 Camshaft/Crankshaft Timing Pin
OEM Toolcodes
- 0132AJ1
- 0187B
- 0189B
- 0194B
- 09919 58120
- 21 263
- 303 735
- 3031277
- 49 JE02 021
- 607 589 01 15 00
- 8mm drill bit
- 8mm Pin
- 999 7122
- EN-52137
- MOT 1430
- Mot.1430
C282 Tensioner Pulley Locking Pin
OEM Toolcodes
- 0198-J
- 11 4 120
- 303-1054
- EN-51418
- MB995208
- T03006
- T10115
- T40316
C488 Auxiliary Belt Tensioner Locking Pin.
OEM Toolcodes
- 4 mm drill bit
- 4mm pin
- EN-955-2
- KM6130
- Pin 3 6mm
C701 Flywheel Holding Tool
OEM Toolcodes
C702 Crankshaft Timing Pin
OEM Toolcodes
C703 Camshaft Setting Block Exhaust 1.0 Turbo
OEM Toolcodes
C703 Camshaft Setting Block Exhaust 1.0 Turbo
OEM Toolcodes
C703 Camshaft Setting Block Exhaust 1.0 Turbo
OEM Toolcodes
C704 Camshaft Setting Block Inlet 1.0 Turbo
OEM Toolcodes
C705 Front Cover Oil Seal Installer
OEM Toolcodes
Applications
Ford
- Ford B-MAX 2012 - 2018
- Ford C-MAX/ Grand C-MAX 2012 - on
- Ford EcoSport 2013 - on
- Ford Fiesta/ Fiesta Active 2013 - on
- Ford Focus/ Focus Active 2012 - on
- Ford Mondeo 2015 - 2018
- Ford Tourneo Connect 2014 - on
- Ford Grand Tourneo Connect 2013 - 2018
- Ford Transit Connect 2014 - on
- Ford Transit Courier 2014 - 2019
1,0 EcoBoost M1CA M1CB M1DA M1DC M1DD M1DH M1JA M1JC M1JE M1JH M1JJ M1JL M1JM M1JP M1JU M2DA M2DB M2DC M2GA M2GB QOJA QOJC SFCA SFCB SFCC SFCD SFDA SFDB SFJA SFJB SFJC SFJD SFJE SFJH SFJJ SFJK SFJL SFJN SFJP YYJA YYJB YYJC YYJD YYJE YYJF YYJG
Supplier Code: 6952LT
E and M Code: 6952LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Engine Timing Tools
|
