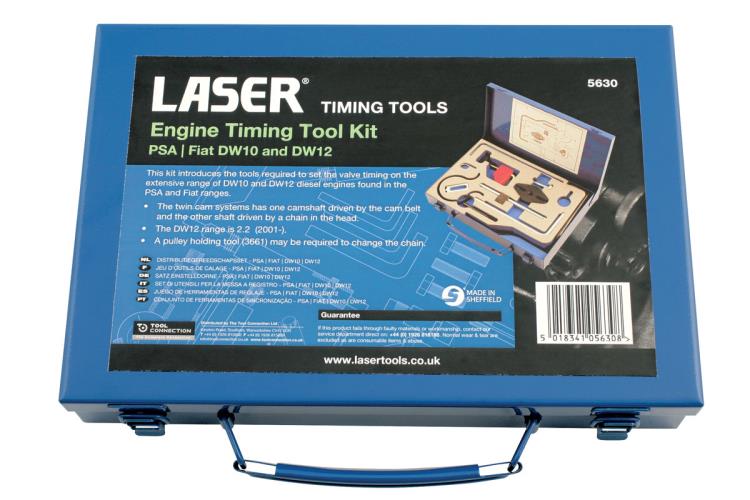

Laser Tools Engine Timing Tool Kit - for PSA Fiat 5630LT
Laser Tools Engine Timing Tool Kit - for PSA Citroen DS Fiat Mitsubishi Peugeot Toyota Vauxhall Opel 5630LT

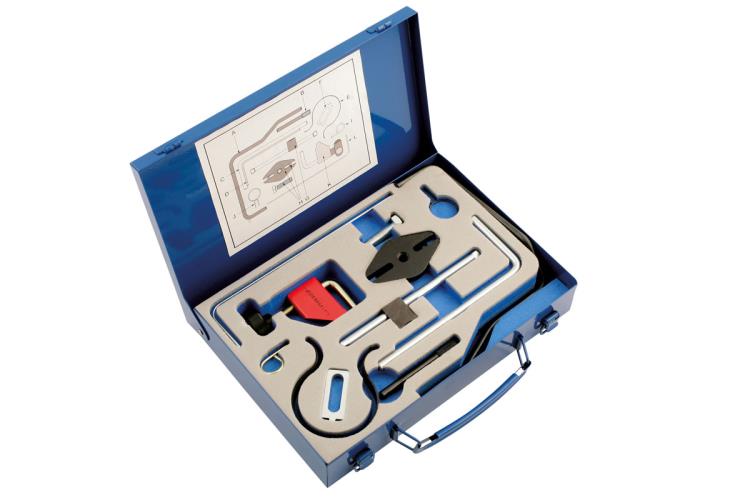

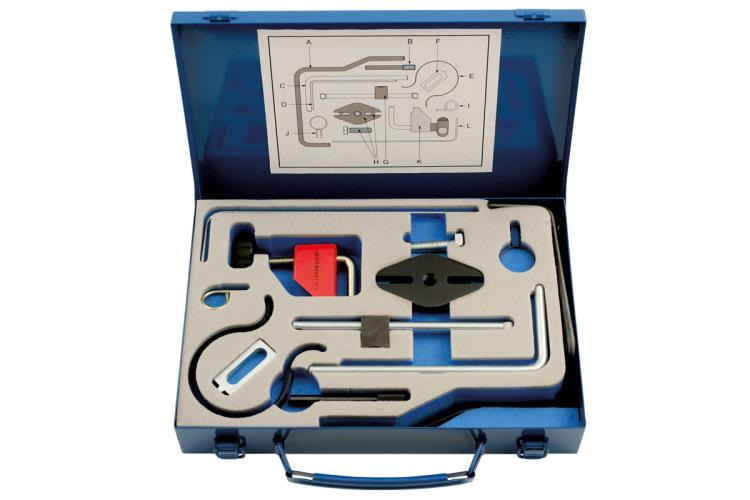

This kit provides the tools required to set the valve timing on the extensive range of DW10 and DW12 diesel engines found in the PSA and Fiat ranges.
- The DW10 engine range has a 2.0 litre capacity (from 1999) and can be either single or double overhead cam.
- The twin cam systems have one camshaft driven by the cambelt and the other camshaft driven by a chain linking the camshafts in the head.
- The DW12 range is 2.2 litre (from 2001).
- A pulley holding tool, such as Part No. 2869, may be required to change the chain.
- Made in Sheffield.

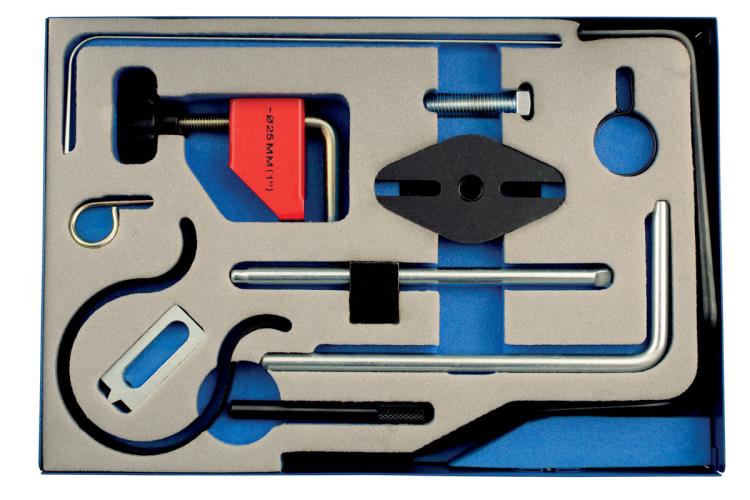

Set Contains
C066 Flywheel Timing Pin 8mm
OEM Toolcodes
- 0153N
- 0188Y
- 0288D
- 1 860 863 000
- 7099 TM
- EN-52137
- OUT0000127
C105 Camshaft Timing Pin (CA2)
OEM Toolcodes
- 0132AJ2
- 0188M
- 2 000 023 200
- 4533 TAC
- 4533 TAC2
C115 Flywheel Locking Tool
OEM Toolcodes
- 0134AF
- 0134Q
- 0188F
- 1 870 765 001
- 1 870 827 000
- 9044 T
- EN-52333
C118 Tensioning Lever Hdi
OEM Toolcodes
C121 Timing Belt Retaining Clip
OEM Toolcodes
- 0132AK
- 0153AK
- 0188K
- 0189K
- 1 870 900 100
- 4533 TAD
- MOT 1436
C125 Flywheel Pulley Puller
OEM Toolcodes
C351 Flywheel Timing Pin
OEM Toolcodes
- 0188.X
- 303 1059
- 303 1270
- 999 7121
C390 Crankshaft Sprocket Centraliser
OEM Toolcodes
- 0188AH
- 2 000 020 300
- EN-52336
C455 Belt Retaining Tool
OEM Toolcodes
C568 Auxiliary Drive Belt Tensioner 4mm
OEM Toolcodes
C569 Tensioner Locking Pin 2mm
OEM Toolcodes
C570 Tensioner Locking Pin
OEM Toolcodes
Applications
Citroen
- Citroen Berlingo/Berlingo First I/II 1999 - 2007
- Citroen C4 2004 - 2011
- Citroen C4 II 2010 - 2018
- Citroen C4 Picasso/Grand Picasso 2006 - 2015
- Citroen C4 Picasso/Grand Picasso II 2013 - 2018
- Citroen C4 SpaceTourer/Grand SpaceTourer 2018 - on
- Citroen C4 Sedan 2007 - 2011
- Citroen C5 2000 - 2004
- Citroen C5 II 2004 - 2008
- Citroen C5 III 2007 - 2017
- Citroen C5 Aircross 2018 - 2022
- Citroen C6 2006 - 2011
- Citroen C8 2002 - 2015
- Citroen C-Crosser 2007 - 2012
- Citroen Dispatch/Jumpy I/II 1999 - 2007
- Citroen Dispatch/Jumpy III 2007 - 2016
- Citroen Dispatch/Jumpy IV 2016 - on
- Citroen DS4/ Crossback 2011 - 2017
- Citroen DS5 2012 - 2017
- Citroen Relay/Jumper 2001 - 2002
- Citroen Relay/Jumper II 2002 - 2006
- Citroen Relay/Jumper III 2015 - on
- Citroen SpaceTourer 2016 - on
- Citroen Xsara II 2000 - 2006
- Citroen Xsara Picasso 1999 - 2006
2,0 HDi AHY (DW10CE) AHZ (DW10CD) RHB (DW10CTED4) RHC (DW10CTED4) RHD (DW10C) RHD (DW10CTED4) RHE (DW10CTED4) RHF (DW10BTED4) RHG (DW10UTED4) RHH (DW10C) RHH (DW10CTED4) RHJ (DW10BTED4) RHK (DW10UTED4) RHL (DW10BTED4) RHM (DW10ATED4) RHR (DW10BTED4) RHS (DW10ATED) RHT (DW10ATED4/L4) RHV (DW10UTD) RHW (DW10ATED4) RHW (DW10JATED4) RHX (DW10BTED/L3) RHY (DW10TD) RHZ (DW10ATED) RHZ (DW10ATED/L3) RHZ (DW10ATED4)
2,0 BlueHDi AHH (DW10FC) AHJ (DW10FE) AHK (DW10FE) AHM (DW10FUE) AHN (DW10FUD) AHP (DW10FUC) AHR (DW10FD) AHS (DW10FD) AHV (DW10FD) AHW (DW10FC) AHX (DW10FD) EHS (DW10FDDU) EHT (DW10FDDU) EHW (DW10FCd) EHY (DW10FCC) EHZ (DW10FC) EHZ (DW10FDCU)
2,2 HDi 4HK (DW12MTED4) 4HL (DW12CTED4) 4HN (DW12MTED4) 4HP (DW12BTED4) 4HR (DW12BTED4) 4HS (DW12BTED4) 4HT (DW12BTED4) 4HW (DW12TED4/L4) 4HX (DW12TED4) 4HY (DW12UTED)
2,2 Blue HDi 4HA (DW12RUE) 4HB (DW12RUD) 4HC (DW12RUC) 4HH (DW12RUC) 4HJ (DW12RUE) 4HK (DW12RUE)
DS
- DS 4 2015 - 2015
- DS 4 II 2015 - 2018
- DS 4 Crossback 2015 - 2018
- DS 5 2015 - 2018
- DS 7 Crossback 2017 - 2022
2,0 HDi RHC (DW10CTED4) RHD (DW10C) RHE (DW10CTED4) RHH (DW10C)
2.0 BlueHDi AHR (DW10FD) AHS (DW10FD) AHV (DW10FD) AHW (DW10FC) AHX (DW10FD) EHZ (DW10FC)
Fiat
- Fiat Scudo 1999 - 2007
- Fiat Scudo 2007 - 2016
- Fiat Ulysse 1999 - 2002
2,0 JTD/MultiJet DW10ATED (RHX) DW10ATED (RHZ) RH02 (DW10CTED4) RHG (DW10UTED4) RHH (DW10CTED4) RHK (DW10UTED4) RHR (DW10BTED4)
Mitsubishi
- Mitsubishi Outlander 2007 - 2013
2,2 DI-D 4HK 4HN
Peugeot
- Peugeot 206 1999 - 2006
- Peugeot 306 1999 - 2002
- Peugeot 307 / 307 CC 2001 - 2009
- Peugeot 308 / 308 CC 2007 - on
- Peugeot 406 / 406 Coupe 1999 - 2006
- Peugeot 407 / 407 Coupe 2004 - 2012
- Peugeot 508 2011 - 2018
- Peugeot 508 2018 - on
- Peugeot 607 2000 - 2011
- Peugeot 807 2005 - 2015
- Peugeot 3008 2009 - 2016
- Peugeot 3008 2016 - 2020
- Peugeot 4007 2007 - 2012
- Peugeot 5008 2009 - 2017
- Peugeot 5008 2017 - 2021
- Peugeot Boxer III 2015 - on
- Peugeot Expert I/II 1999 - 2007
- Peugeot Expert III 2007 - 2016
- Peugeot Expert IV 2016 - on
- Peugeot Partner/Partner Origin/Ranch I/II 1999 - 2007
- Peugeot RCZ 2010 - 2015
- Peugeot Traveller 2016 - on
2,0 HDi DW10ATED (RHS) DW10ATED (RHZ) DW10ATED4 (RHM) DW10ATED4 (RHW) DW10ATED4/L4 (RHT) DW10BTED (RHX) DW10BTED4 (RHF) DW10BTED4 (RHL) DW10BTED4 (RHR) DW10CD (AHZ) DW10CE (AHY) DW10CTED4 (RHA) DW10CTED4 (RHC) DW10CTED4 (RHD) DW10CTED4 (RHE) DW10CTED4 (RHH) DW10TD (RHY) DW10UTED4 (RHG) DW10UTED4 (RHK)
2,0 BlueHDi DW10FC (AHT) DW10FC (AHH) DW10FC (AHW) DW10FCd (AHX) DW10FD (AHX) DW10FD (AHR) DW10FD (AHS) DW10FD (AHV) DW10FD (AHX) DW10FE (AHJ) DW10FE (AHK) DW10FUC (AHP) DW10FUD (AHN) DW10FUE (AHM) DW10FC (EHZ) DW10FCC (EHY) DW10FDDU (EHS) DW10FDDU (EHT)
2,2 HDi DW12ATED (4HX) DW12ATED (4HZ) DW12BTED4 (4HP) DW12BTED4 (4HR) DW12BTED4 (4HS) DW12BTED4 (4HT) DW12CTED4 (4HL) DW12MTED4 (4HK) DW12MTED4 (4HN) DW12TED4/L4 (4HW)
2,2 BlueHDi DW12RUC (4HC) DW12RUC (4HH) DW12RUD (4HB) DW12RUE (4HA) DW12RUE (4HJ) DW12RUE (4HK)
Toyota
- Toyota Proace 2013 - 2016
- Toyota Proace 2016 - on
2,0 4WZ-FHV/DW10FC (AHH) 4WZ-FTV/DW10FD (AHX) 4WZ-FTV/DW10FE (AHJ) 4WZ-FTV/DW10FE (AHK) 4WZ-FTV/DW10FDCU (EHZ)
Vauxhall / Opel
- Vauxhall Movano-C 2021 - on
- Vauxhall Vivaro-C/Vivaro-C Life 2019 - on
- Vauxhall Zafira Life 2019 - on
- Opel Movano-C 2021 - on
- Opel Vivaro-C/Vivaro-C Life 2019 - on
- Opel Zafira Life 2019 - on
2,0 Blue HDi DW10FD (AHX) DW10FDCU (EHZ) DW10FDDU (EHS) DW10FDDU (EHT) DW10FE (AHK) DW10FE (EHZ)
2,2 Blue HDi DW12RUC (4HC) DW12RUD (4HB) DW12RUE (4HA)
Supplier Code: 5630LT
E and M Code: 5630LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
