JASIC PRO ARC 160 Welding Inverter (Dual Voltage) JA-160DV

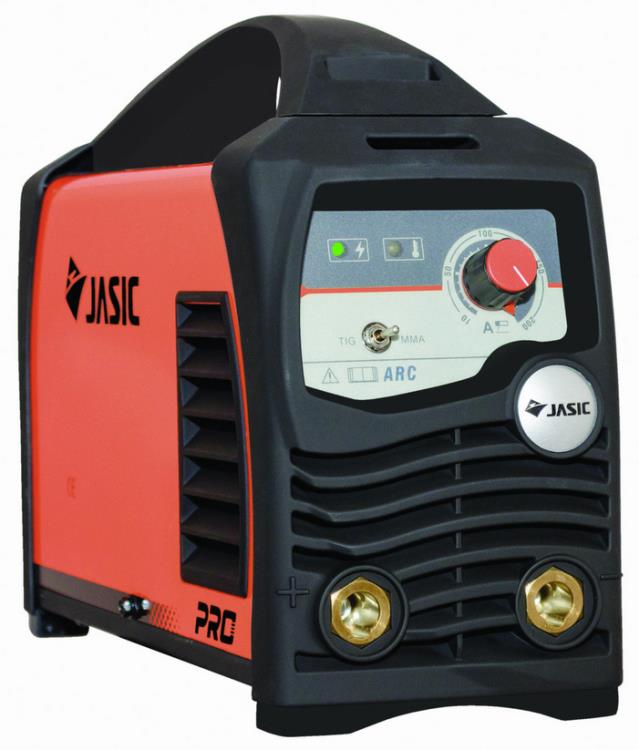

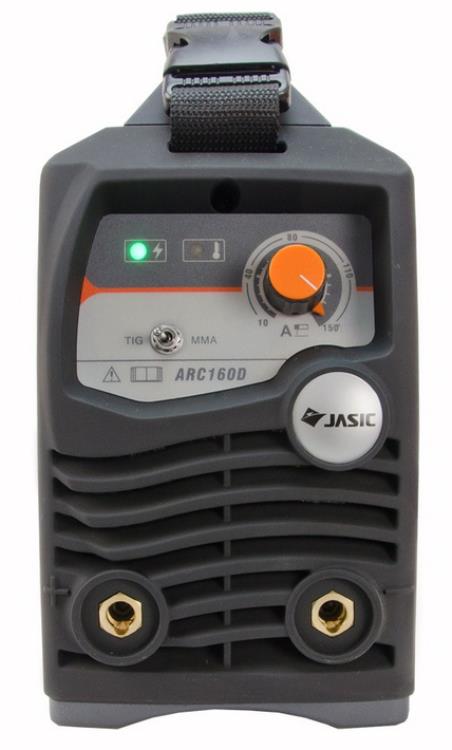

JASIC PRO ARC 160 Welding Inverter (Dual Voltage)
The unique electronic structure and air channel design in this series of machines provides efficient cooling of the power devices as well as improving the duty cycles of the machines. The design of the forced air-cooling system
channel can effectively prevent the power devices and control circuits from being damaged by the dust introduced into the machine by the fan.
The reliability of the machine is greatly improved as a result. The streamline design means front and rear panels are naturally integrated via large radian transition. The front and rear panels of the machine and the handle are coated with rubber oil, giving the machine a very tactile and comfortable grip with an excellent appearance.
The Jasic Pro Arc 160 is a highly flexible dual voltage inverter for site work applications. Its light, easy to use and comes with a 5 year warranty. It features an auto sensing facility for voltage selection which will ensure the correct 110/240 voltage is maintained.
- IGBT Inverter technology - for the professional user
- MMA / DC Lift TIG
- Hot start ignition, anti stick
- Self adaptive arc force, VRD
- 40 Khz inverter frequency, high-efficiency
- Compact size, lightweight and modern design
- Easy arc starting, minimal spatter
- Stable and reliable
- Auto-compensation for voltage fluctuation
- Advanced single PCB construction
- Generator friendly
- High quality tactile rubber finish to mouldings and handle
- 5 year warranty
Technical Data
- Input Voltage: AC 230V 50/60 Hz AC 115V 50/60 Hz
- Input Power (kVA): 7.1 5
- Current Range (A): 10 - 160 10 - 120
- Duty Cycle: @ 40°C 160A @ 35% 120A @ 35%
- No-Load Voltage (V): 63
- Efficiency (%): 85
- Power Factor: 0.70
- Protection/Insulation Class: IP21/F
- Dimensions (mm): 313 x 130 x 250
- Weight (Kg): 4.7
Code: JA-160DV
Supplier Code: JA-160DV
E and M Code: JA-160DVWILK
Price(Exc.VAT): £298.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
