JASIC PRO ARC 180 Welding Inverter (Dual Voltage) JA-180DV

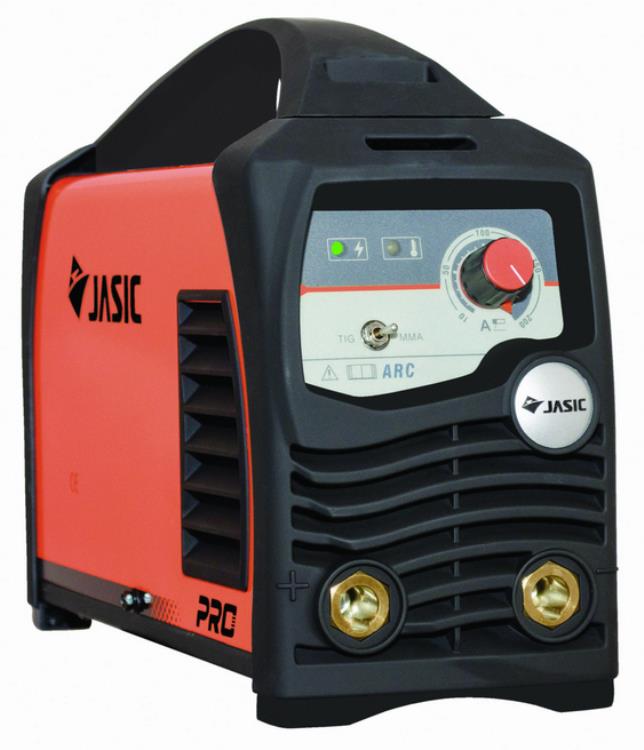

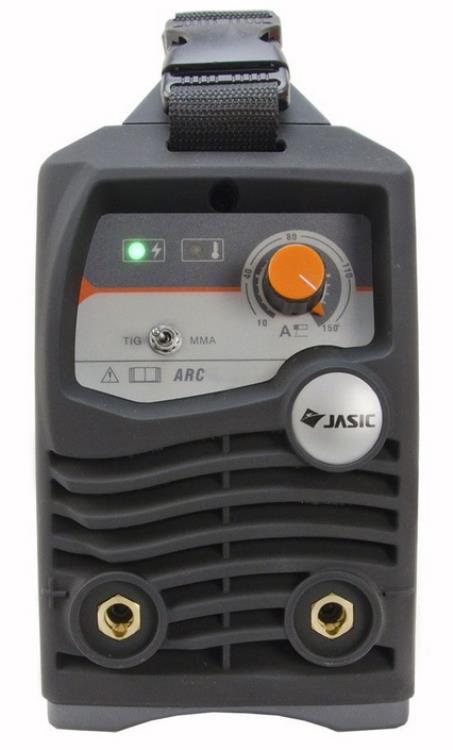

JASIC PRO ARC 180 Welding Inverter (Dual Voltage)
The unique modern structure and air channel design in this Pro Arc series of machines provides efficient cooling to the welder as well as improving the duty cycles of the machines. The design of the forced air-cooling system
channel can effectively prevent the power devices and control circuits from being damaged by the dust being produced by the fan and this has improved the reliability of the machine as a result.
The front and rear panels of the machine and the handle are coated with rubber oil, giving the machine a very tactile and comfortable grip with an excellent appearance.
- IGBT Inverter technology - for the professional user
- MMA / DC Lift TIG
- Hot start ignition, anti stick
- Self adaptive arc force, VRD
- 40 Khz inverter frequency, high-efficiency
- Compact size, lightweight and modern design
- Easy arc starting, minimal spatter
- Stable and reliable arc
- Auto-compensation for voltage fluctuation
- Advanced single PCB construction
- Generator friendly
- High quality tactile rubber finish to mouldings and handle
- 5 year warranty
Technical Data
- Input Voltage: AC 230V 50/60 Hz AC 115V 50/60 Hz
- Input Power (kVA): 8 6
- Current Range (A): 10 - 180 10 - 140
- Duty Cycle: @ 40°C 180A @ 30% 140A @ 35%
- No-Load Voltage (V): 63
- Efficiency (%): 85
- Power Factor: 0.70
- Protection/Insulation Class: IP21/F
- Dimensions (mm): 313 x 130 x 250
- Weight (Kg): 4.7
Code: JA-180DV
Supplier Code: JA-180DV
E and M Code: JA-180DVWILK
Price(Exc.VAT): £350.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
