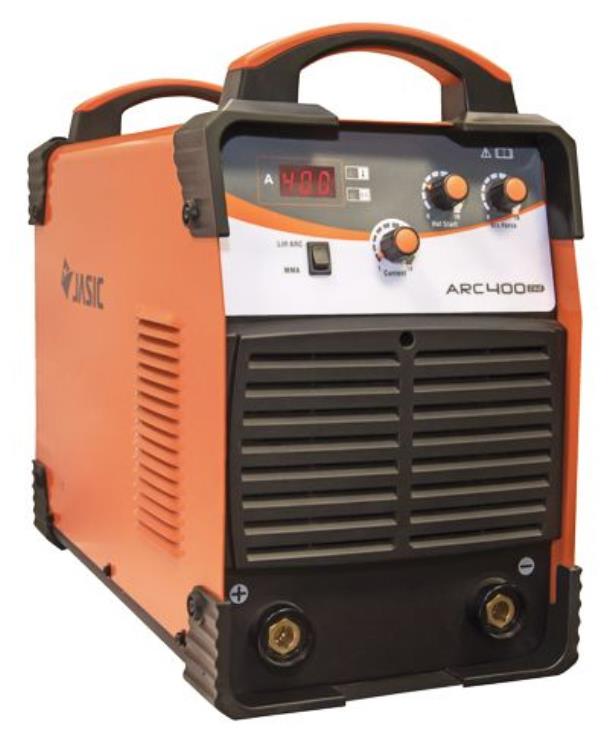

JASIC PRO ARC 400 Welding Inverter JA-400
JASIC PRO ARC 400 Welding Inverter
Electrode polarity
In general when using manual arc welding electrodes the electrode holder is connected the the positive terminal and the work return to the negative terminal. Always consult the electrode manufacturer’s data sheet if you have any doubts. When using the machine for TIG welding the TIG torch should be connected to the negative terminal and the work return to the positive terminal
MMA welding
Insert the cable plug with electrode holder into the “+” socket on the front panel of the welding machine, and tighten it clockwise. Insert the cable plug of the work return lead into the “-” socket on the front panel of the welding machine, and tighten it clockwise
TIG Welding
Insert the cable plug with the work clamp into the “+” socket on the front panel of the welding machine, and tighten it clockwise. Insert the cables plug of the TIG torch into the “-” socket on the front panel of the machine and tighten clockwise. Connect the gas hose to the regulator / flowmeter located on the shield gas cylinder and connect the other end to the machine. Open the valve on the TIG torch and “scratch” the electrode on the work piece to start the arc.
- IGBT Inverter technology - for the professional user
- Digital amp and voltmeter
- Anti stick, arc force, hot start, DC Lift TIG
- Advanced control technology
- Compact size, lightweight and modern design
- Excellent weld characteristics

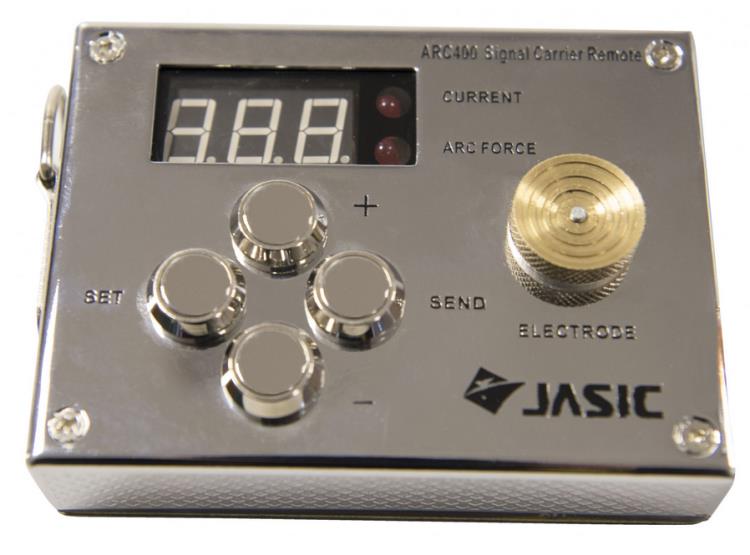

- Remote control option
- Auto-compensation for voltage fluctuation
- Generator friendly

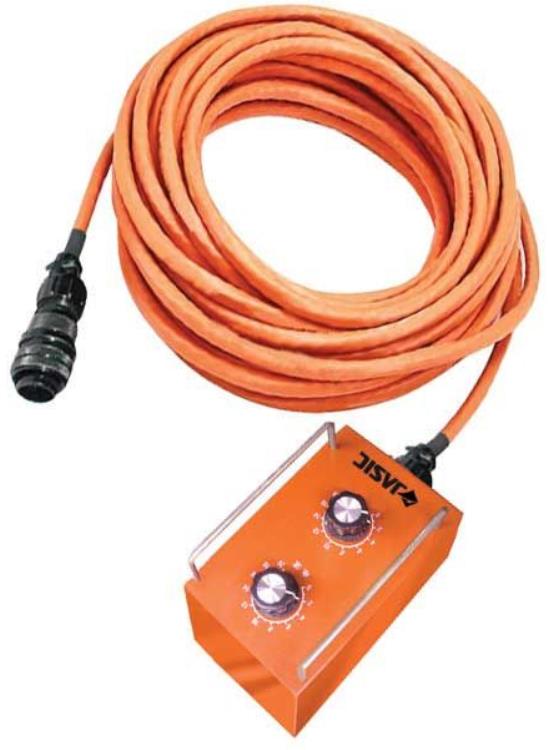

- Optional accessories: inverter trolley (JAT-400), 25 m remote control (JRC-25)
- 5 year warranty
Technical Data
- Input Voltage (3 Phase): AC 400V - 50/60 Hz
- Fuse Rating (A): 40
- Current Range (A): 20 - 400
- Duty Cycle: @ 40°C 400A @ 60%
- No-Load Voltage (V): 65
- Protection/Insulation Class: IP21S/F
- Dimensions (mm): 540 x 275 x 510
- Weight (Kg): 31
Code: JA-400
Supplier Code: JA-400
E and M Code: JA-400WILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Full Pallet (UK Not Highlands and Over Seas) £39.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
