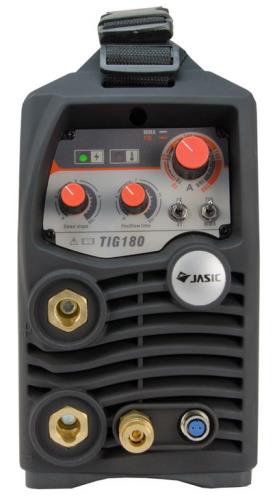

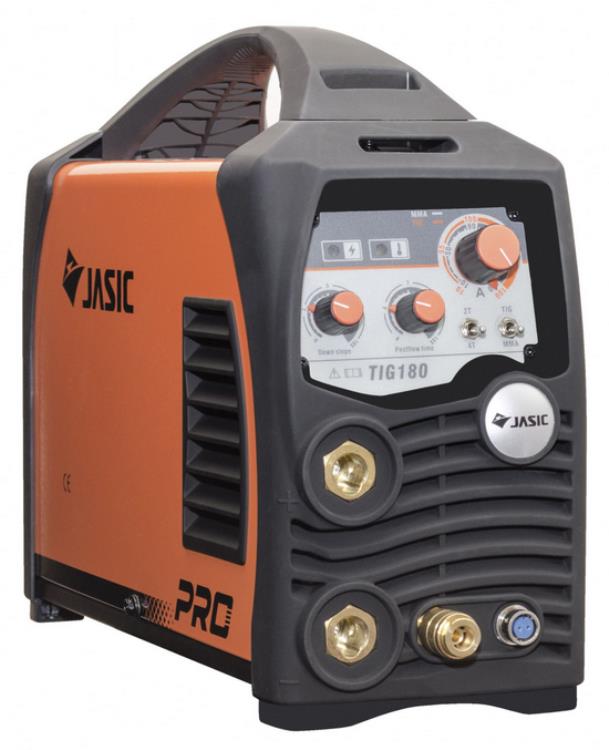

JASIC PRO TIG 180 Welding Inverter (Dual Voltage) JT-180DV
JASIC PRO TIG 180 Welding Inverter (Dual Voltage)
Upslope time control
This function can be added upon customers’ requirements.It is used to adjust the current increasing speed when the current rises from the minimum value to the preset value after arc is ignited successfully. If this function is not added, the upslope time is 0.1s fixed.
MMA
After connecting the welding leads as detailed you will need to switch the power switch on the back panel to “ON”
Select MMA by switching to the MMA welding mode. There is voltage output at both output terminals. Set the amperage on the machine suitable for the electrode being used. Please see below a guide to amperages required. Ensure you check that you have the electrode polarity correct.
- IGBT Inverter technology - for the professional user
- DC TIG / MMA
- Hot start, lift arc, HF arc ignition, 2T/4T
- Down slope & post flow
- High frequency inverter, high-efficiency
- Compact size, lightweight and modern design
- Easy start, stable and reliable arc
- Auto-compensation for voltage fluctuation
- Advanced single PCB construction
- Generator friendly

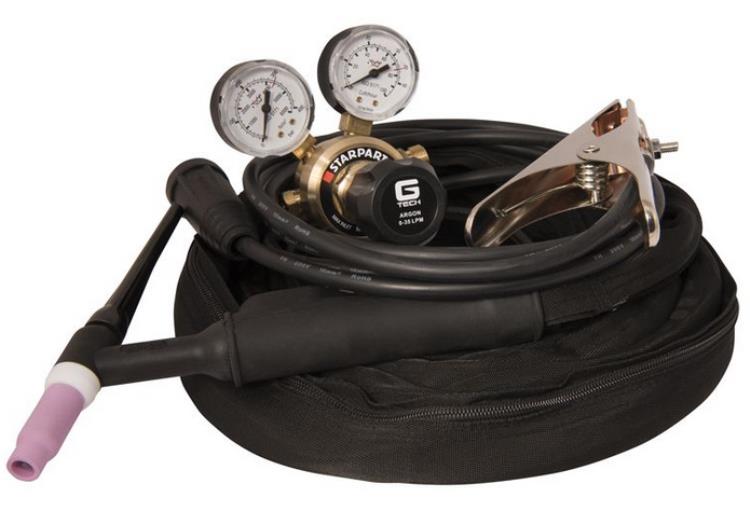

- Includes TIG torch & adaptor, gas regulator, work return lead & clamp
- High quality tactile rubber finish to mouldings and handle
- 5 year warranty
Technical Data
- Input Voltage AC: 230V 50/60 Hz AC 115V 50/60 Hz
- Input Power (kVA): MMA 7.1 TIG 5.2
- Current Range (A): MMA 10 - 160 MMA 10 - 100 TIG 10 - 180 TIG 10 - 120
- Duty Cycle: @ 40°C 180A @ 35% 120A @ 35%
- No-Load Voltage (V): MMA 60 TIG 65
- Efficiency (%): 85
- Power Factor: 0.70
- Protection/Insulation Class: IP21S/F
- Dimensions (mm): 365 x 135 x 277
- Weight (Kg): 5.94
Code: JT-180DV
Supplier Code: JT-180DV
E and M Code: JT-180DVWILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
