JASIC PRO TIG 200P AC/DC Digital Welding Inverter JT-200D

Jasic Inverters Car Parts

JASIC PRO TIG 200P AC/DC Digital Welding Inverter

The JT-200D and 315D are a series of digital controlled AC/DC pulsed TIG/MMA inverter welding machines with excellent performance and utilising advanced technology system. They It have various AC/DC modes such as AC square-wave TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, AC MMA (SMAW), DC MMA (SMA, TIG spot welding (DC, pulsed or AC), and composite waveform TIG, etc., and can be widely used in high quality welding of a wide range of materials. The design uses both advanced and mature technologies to ensure reliability and extended machine life.

Key Features

Advanced digital control
The machines adopt advanced MUC intelligent digital control technology, and all the major functions are performed through the software. It is this digital control that provides a much improved performance when compared with the traditional welding machines.

Advanced inverter technology
The primary inverter frequency is 100 KHz, which greatly reduces the volume and weight of the welder. The great reduction in magnetic and resistance loss obviously enhances the transformer efficiency and energy saving effect. The working frequency is beyond audio range, which almost eliminates the noise pollution.

Automatic protection functions
When the mains voltage fluctuates sharply, the welding machine will automatically stop working with the fault information displayed, and it will automatically recover after the mains voltage turns stable. In the case of over current or overheating, the machine will stop working automatically with the fault information displayed. Such protection functions greatly increase the lifespan of the machine.

Excellent consistency and stable performance
The machines adopt intelligent digital control, so it is not sensitive to the change of parameters of components. That
is,the performance of welding machine will not be affected by the change of the parameters of certain components. It can also compensate for any change of the working environment such as temperature and humidity, etc. Therefore, the consistency and stability of the digital control welder is better than that of traditional welder.

Parameters are easy to adjust and software easy to update
The control of parameters for a welding machine with intelligent digital control is much easier and more accurate, because its main functions are achieved through software. To change the a function or some of the parameters, you do not need to change the circuit, and the only thing you have to do is to download the updated software.

User-friendly interface
This machine adopts international standard graphic language interface, which is simple, clear, intelligible, and convenient for users’ operation.

Practical welding process management function
The machine allows users to divide the welding parameters into five groups, according to different techniques during operation, each of which can complete a particular welding task. It undoubtedly facilitates the technical standardisation management in welding production.

High-quality MMA welding
MMA welding performance is significantly improved with an excellent control algorithm: easier to ignite arc, stable welding current, little spatter, no electrode sticking, good shaping, and adaptable to the change of length or section of welding cable.

High-quality TIG welding
Improved digital technology for constant current ensures the low noise and a high stability of arc quality as well. The mature control algorithm provides users with a convenient and practical approach to control the current. Totally 20 TIG operation modes, including the typical 2T/4T, and 4 of them 5 are programmable, which offers a facility for a user‘s special application.

Remote control available
The machine offers an analog remote control mode (foot control), which can realise real-time adjustment of TIG
 welding current over 10m away.

Robot system for automatic welding available
The machine is provided with RS-485 communication interface, and it is easy for users to use with an automatic welding system or with other equipment with the embedded standard ModBus communication protocol.

Perfect automatic recording function
All data such as cumulative start up times, cumulative running time, cumulative welding time, cumulative TIG welding time, accumulative MMA welding time, cumulative times of alarm, cumulative times of over current, cumulative times of overheating, cumulative times of under voltage and cumulative times of water-cooling alarm can be calculated and stored in FLASH memory.

Control interface for automatic welding equipment available
This machine provides torch trigger signal, current signal and fault alarm signal for connection with automatic welding equipment. Wide input voltage range tolerance


Technical Data

  • Input Voltage (Single Phase): AC 230V - 50/60 Hz
  • Rated Input Current (A): 40
  • Current Range (A): MMA DC 10 - 160 MMA AC 20 - 160            TIG DC 10 - 200 TIG AC 20 - 200
  • Duty Cycle: @ 40°C MMA 160A @ 40% TIG 200A @ 35%
  • No-Load Voltage (V): 60
  • Power Factor: 0.93
  • Protection/Insulation Class: IP21S/B
  • Dimensions (mm): 570 x 350 x 420
  • Weight (Kg): 27

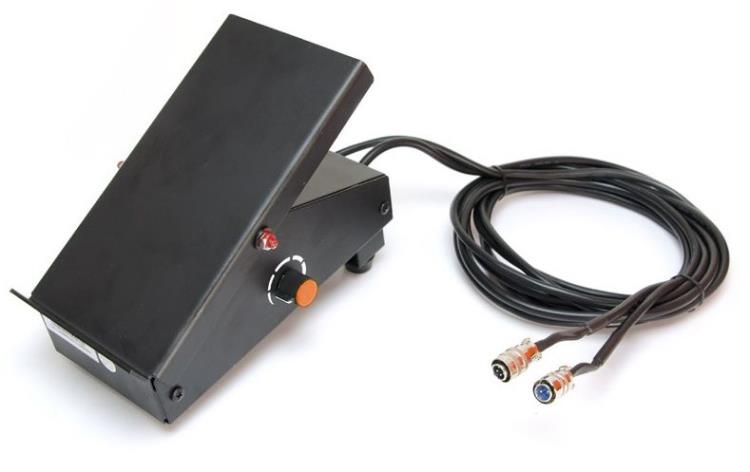

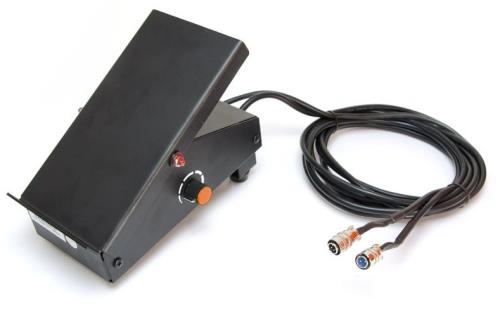

Foot control option
This machine can identify the foot control automatically. The machine will enter into foot control mode automatically after the plug of the foot control is connected to the welding machine and the machine is powered on again. In foot control mode, the maximum current is the preset current and the minimum current is 10A.

Voltage indicator
When this indicator illuminates, it indicates that there is voltage output at the output terminals of the welding machine. When TIG is selected as the welding mode, there will be voltage output only when the torch trigger is pressed continuously and after arc is ignited successfully. When MMA is selected as the welding mode, there will be voltage output whether arc is ignited or not.





Code: JT-200D



Supplier Code: JT-200D

E and M Code: JT-200DWILK

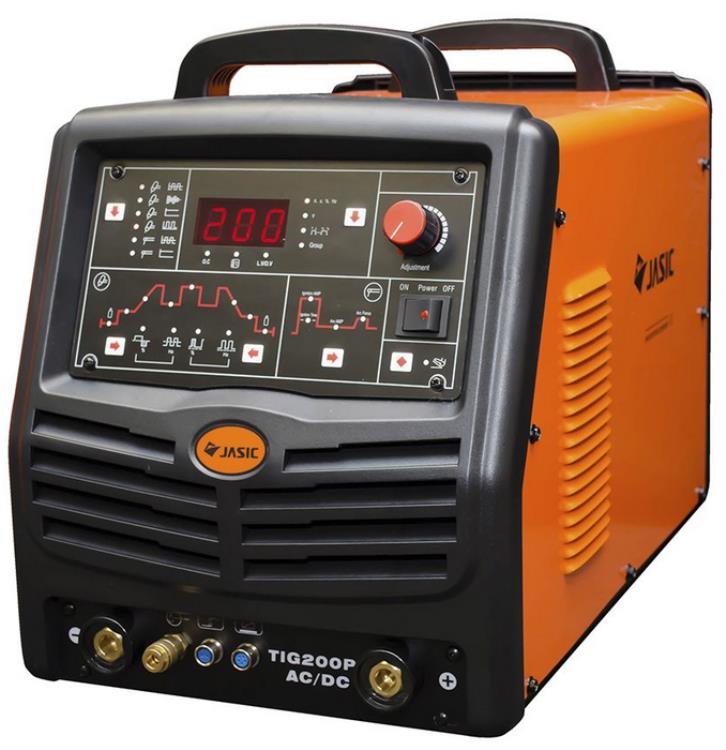

JASIC PRO TIG 200P AC/DC Digital Welding Inverter JT-200D - JT-200DWelder-1.jpg

JASIC PRO TIG 200P AC/DC Digital Welding Inverter JT-200D - JT-200DWelder-2.jpg

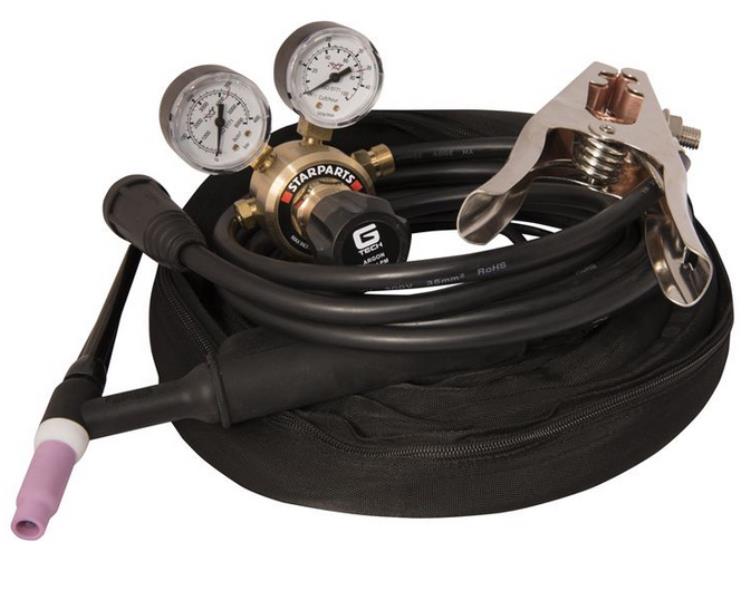

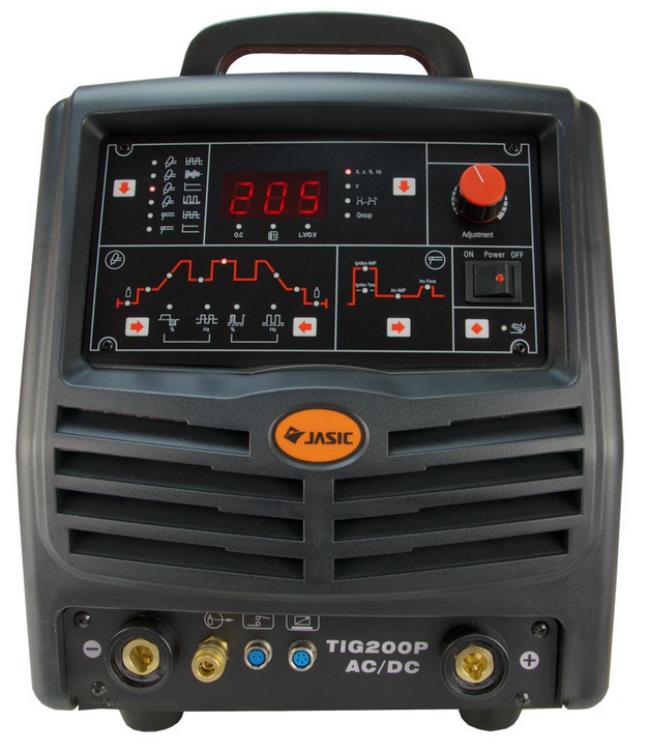

JASIC PRO TIG 200P AC/DC Digital Welding Inverter JT-200D - JT-200DWelder-3.jpg

JASIC PRO TIG 200P AC/DC Digital Welding Inverter JT-200D - JT-200DWelder-4.jpg

Price(Exc.VAT): £0.00

Quantity Available: 0

Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...

When will this be back in stock / Information Request

Name

Email:


Your Question






Category: Welding and Cutting / Sub Category: Welders
