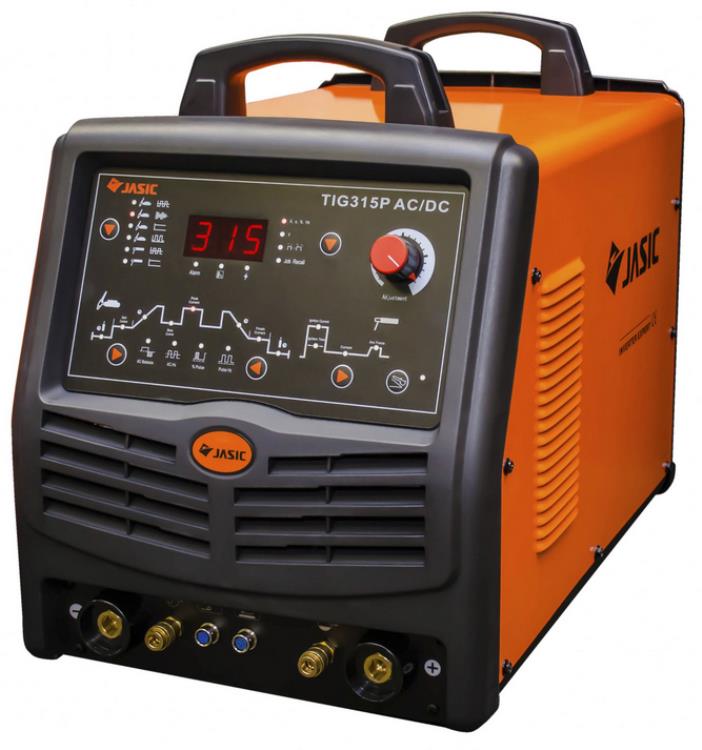

JASIC PRO TIG 315P AC/DC Digital JT-315D
JASIC PRO TIG 315P AC/DC Digital
The JT-200D and 315D are a series of digital controlled AC/DC pulsed TIG/MMA inverter welding machines with excellent performance and utilising advanced technology system. They It have various AC/DC modes such as AC square-wave TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, AC MMA (SMAW), DC MMA (SMA, TIG spot welding (DC, pulsed or AC), and composite waveform TIG, etc., and can be widely used in high quality welding of a wide range of materials. The design uses both advanced and mature technologies to ensure reliability and extended machine life.
Key features
Advanced digital control
The machines adopt advanced MUC intelligent digital control technology, and all the major functions are performed through the software. It is this digital control that provides a much improved performance when compared with the traditional welding machines.
Advanced inverter technology
The primary inverter frequency is 100 KHz, which greatly reduces the volume and weight of the welder. The great reduction in magnetic and resistance loss obviously enhances the transformer efficiency and energy saving effect. The working frequency is beyond audio range, which almost eliminates the noise pollution.
Automatic protection functions
When the mains voltage fluctuates sharply, the welding machine will automatically stop working with the fault information displayed, and it will automatically recover after the mains voltage turns stable. In the case of over current or overheating, the machine will stop working automatically with the fault information displayed. Such protection functions greatly increase the lifespan of the machine.
Excellent consistency and stable performance
The machines adopt intelligent digital control, so it is not sensitive to the change of parameters of components. That
is,the performance of welding machine will not be affected by the change of the parameters of certain components. It can also compensate for any change of the working environment such as temperature and humidity, etc. Therefore, the consistency and stability of the digital control welder is better than that of traditional welder.
Parameters are easy to adjust and software easy to update
The control of parameters for a welding machine with intelligent digital control is much easier and more accurate, because its main functions are achieved through software. To change the a function or some of the parameters, you do not need to change the circuit, and the only thing you have to do is to download the updated software.
User-friendly interface
This machine adopts international standard graphic language interface, which is simple, clear, intelligible, and convenient for users’ operation.
Practical welding process management function
The machine allows users to divide the welding parameters into five groups, according to different techniques during operation, each of which can complete a particular welding task. It undoubtedly facilitates the technical standardisation management in welding production.
High-quality MMA welding
MMA welding performance is significantly improved with an excellent control algorithm: easier to ignite arc, stable welding current, little spatter, no electrode sticking, good shaping, and adaptable to the change of length or section of welding cable.
High-quality TIG welding
Improved digital technology for constant current ensures the low noise and a high stability of arc quality as well. The mature control algorithm provides users with a convenient and practical approach to control the current. Totally 20 TIG operation modes, including the typical 2T/4T, and 4 of them 5 are programmable, which offers a facility for a user‘s special application.
Remote control available

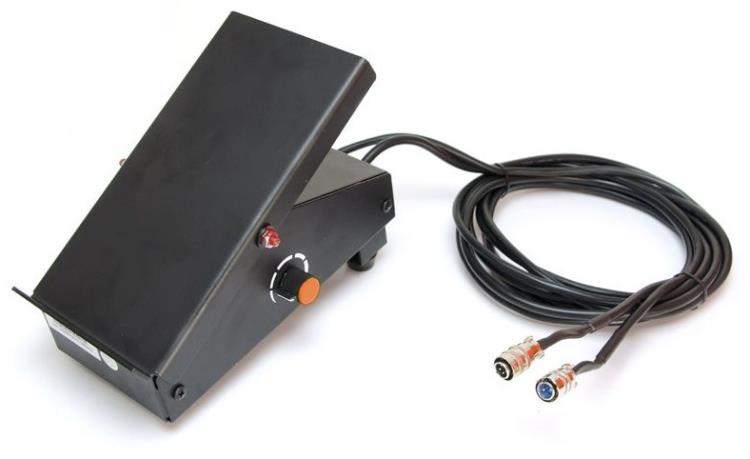

The machine offers an analog remote control mode (foot control), which can realise real-time adjustment of TIG
welding current over 10m away.
Robot system for automatic welding available
The machine is provided with RS-485 communication interface, and it is easy for users to use with an automatic welding system or with other equipment with the embedded standard ModBus communication protocol.
Perfect automatic recording function
All data such as cumulative start up times, cumulative running time, cumulative welding time, cumulative TIG welding time, accumulative MMA welding time, cumulative times of alarm, cumulative times of over current, cumulative times of overheating, cumulative times of under voltage and cumulative times of water-cooling alarm can be calculated and stored in FLASH memory.
Control interface for automatic welding equipment available
This machine provides torch trigger signal, current signal and fault alarm signal for connection with automatic welding equipment. Wide input voltage range tolerance
Technical Data
- Input Voltage (3 Phase): AC 400V - 50/60 Hz
- Rated Input Current (A): 19
- Current Range (A): MMA DC 10 - 250 MMA AC 20 - 250 TIG DC 10 - 320 TIG AC 30 - 320
- Duty Cycle: @ 40°C MMA 250A @ 40% TIG 315A @ 20%
- No-Load Voltage (V): 50
- Power Factor: 0.93
- Protection/Insulation Class: IP21S/B
- Dimensions (mm): 590 x 375 x 380
- Weight (Kg): 33
Code: JT-315D
Supplier Code: JT-315D
E and M Code: JT-315DWILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
