JASIC PRO MIG 250 Separate Welding Inverter JM-250S

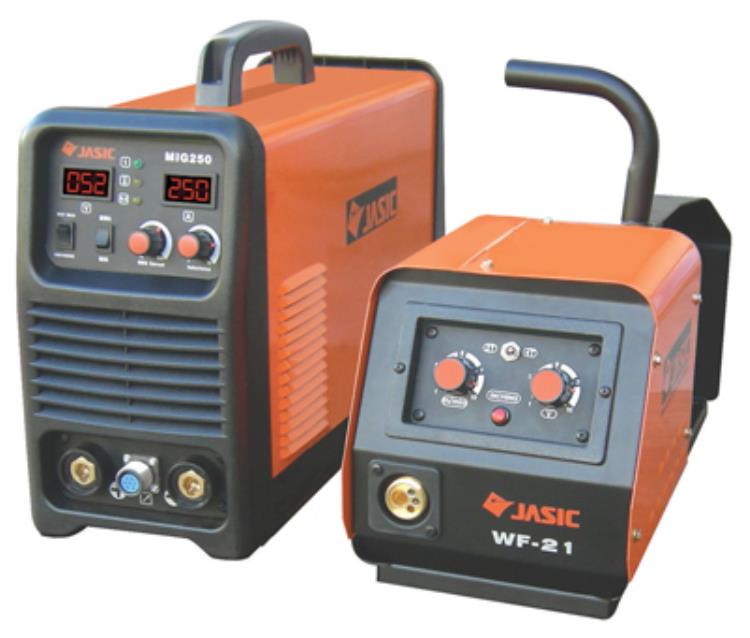

JASIC PRO MIG 250 Separate Welding Inverter
The JM-250S is a portable inverter MIG/MAG/MMA machine with the following features.
- Advanced IGBT inverter technology
- High inverter frequency design greatly reduces the size and weight of the welder.
- Reduction in magnetic and resistance loss enhances the welding efficiency and energy saving effect.
- Working frequency is beyond audio range, which almost eliminates noise pollution.
- Electronic control mode
- Closed loop feedback control provides a stable voltage output, and workable mains voltage fluctuation of ±15%.
- Adjustable welding voltage matching the welding current precisely gives excellent welding characteristics.
- A unique welding dynamic characteristic control circuit provides a stable arc, low spatter, high welding efficiency and excellent weld appearance. .
- Removing wire tip ball after welding; high no-load voltage and soft start wire feeding results in a excellent arc ignition.
- Welds a wide range of wires from 0.6~1.6mm diameter.
- Improved functional design
- With the wire feeder separate from the welding source, the welding operation can be carried out at a wider range.
- Lightweight and portable
- Simple user friendly controls.
- Both spot welding and continuous welding are optional, and work piece burn-through can be avoided when welding sheet metal in spot welding mode.
- Both MMA and MIG/MAG (GMAW) are available, and various welding requirements can be met.
- 2T and 4T welding modes
- Wire inch button
- Includes MIG torch, interconnecting cable, gas regulator, work return lead & clampOptional accessory;
- inverter trolley (JMT-250S)
- 5 year warranty
Technical Data
- Input Voltage (3 Phase): AC 400V - 50/60 Hz
- Input Power (kVA): 8.4
- Input Current (A): 12.1
- Current Range (A): MMA- 10 - 220 MIG- 35-250
- MIG Voltage Range (V): 14-32
- No-Load Voltage (V): 52
- Duty Cycle: @ 40°C 250A @ 60%
- Wire Spool Size: ø 200/300mm
- Efficiency (%): 85
- Power Factor: 0.93
- Protection/Insulation Class: IP21S/F
- Dimensions (mm): 510 x 196 x 385
- Weight: Power Source & Feeder (Kg): 25
Code: JM-250S
Supplier Code: JM-250S
E and M Code: JM-250SWILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
