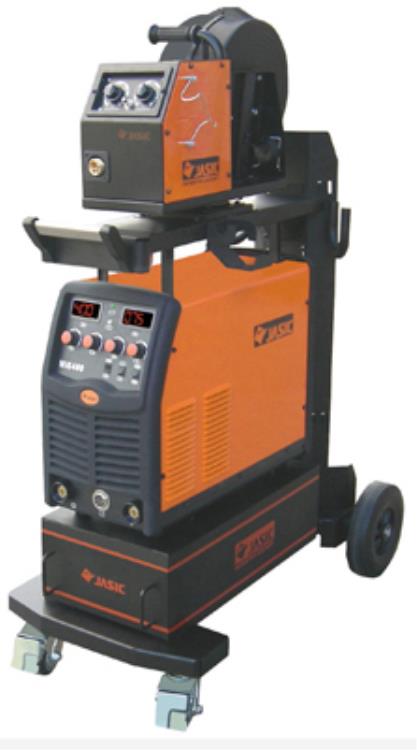

JASIC PRO MIG 400 Multi Process Separate Inverter JM-400S
JASIC PRO MIG 400 Multi Process Separate Inverter
The MIG 400 is an inverter power source that can provide MIG, MMA and gas less self- shielded welding weldingoptions. With its wire feed interconnections it can be used to weld in a wide radius.
Its IGBT power device with unique control mode provides excellent reliability with a high duty cycle.
The system has a closed loop feedback control, constant voltage output, which allows it to operate with a widetolerance to mains fluctuation, within ±15%.
It has continuously adjustable welding voltage and current, to provide excellent welding characteristics. Adopting a unique welding dynamic characteristic control circuit in MIG, provides a stable arc, low spatter, excellentweld appearance and high welding efficiency.
By removing the ball at the end of the wire after welding, a high no-load voltage, and slow wire feed at the start presents exceptional arc starting. The machine also has a very stable welding current in MMA, excellent arc ignition, and can be used with a wide variety of
welding electrodes.
Its high inverter frequency greatly reduces the volume and weight of the welder and the great reduction in magnetic and resistance loss obviously enhances the welding efficiency and energy saving effect. Switching frequency is beyond audio range, which almost eliminates noise pollution.
Key Features
- IGBT MIG MAG/MMA/Lift Arc TIG Inverter
- Digital amp and voltmeter
- High duty cycle
- Advanced control circuitry
- Burn back control & wire inching
- Suitable for 0.6, 0.8, 1.0 and 1.2mm wire
- 2T/4T MMA function
- Power & status LED’s
- Gas check function
- Variable inductance
- Includes MIG torch, trolley, interconnecting cable, gas regulator, work return lead & clamp
- Accommodates full size gas cylinder
- Optional accessory; water cooling unit (JWC-01)
- 5 year warranty
Technical Data
- Input Voltage (3 Phase): AC 400V - 50/60 Hz
- Input Current (A): 26
- Current Range (A): 30 - 400
- MIG Voltage Range (V): 15-40
- No-Load Voltage (V): 62
- Wire Speed (m/min): 1-21
- Duty Cycle: @ 40°C MMA 400A @ 80% MIG 400A @ 100%
- Wire Spool Size: ø 300mm
- Arc Force Range (MMA): 0-250
- Power Factor: 0.91
- Protection Class: IP21S
- Dimensions (mm): 760 x 365 x 585
- Weight: Power Source & Feeder: 53 Kg
Code: JM-400S
Supplier Code: JM-400S
E and M Code: JM-400SWILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
