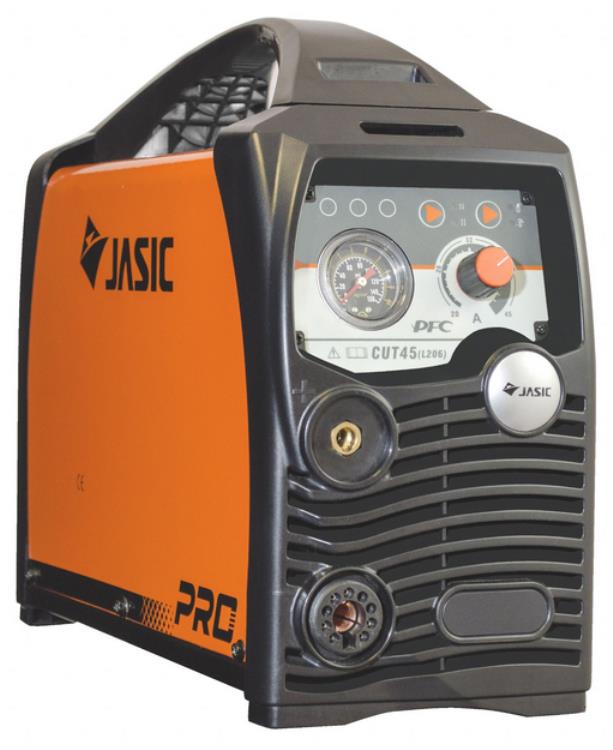

JASIC PRO Plasma Cut 45 Inverter JP-45P
JASIC PRO Plasma Cut 45 Inverter
The Plasma Cut 45 forms part of the Jasic Pro plasma cutter range. Equipped with Pulse Width Modulation Technology and high powered IGBT components enabling 15mm clean cuts and 20mm severance cutting. This user friendly 45 amp Plasma Cutter offers, fast, precision cutting, leaving a smooth finish on Carbon Steel, Stainless and Aluminium.
The Cut 45 also benefits from the Power Factor Correction (PFC) feature that provides energy saving benefits when Plasma Cutting. PFC offers substantial energy savings when compared to other non equipped Plasma Cutting Machines.
This handy little cutter, comes with a PT60 plasma torch which delivers excellent cutting characteristics and is connected by a universal euro connector. Consumables for this torch are widely available and hence can be obtained cost effectively, unlike cheaper machines that come with non-universal plasma cutting torches. A work return lead and clamp are also included in the package.
The Cut 45 benefits from 2T and 4T functionality so the user is offered more dexterity and decreased fatigue during the cut producing cleaner and more accurate results. In 2T, press the button to cut and release to stop the cut. In 4T, press the button on the torch to start the cut, release, then press the button again to stop cutting.
Key Features
- IGBT Plasma Inverter
- Light weight and highly portable Plasma Cutter, weighing just 9.2 Kg
- Variable Cutting Control
- Smooth Precise Cutting meaning less clean up of the cut
- LED Control Display
Specification
| Input Voltage |
AC 230V – 50/60 Hz |
| Dimensions (mm) |
439 x 165 x 328 |
| Compressed Air Requirement |
0.45mpa – 170 L/min |
| Protection/Insulation Class |
IP21 S/F |
| Cutting Capacity (Severance) |
20mm |
| Cutting Capacity (Clean) |
15mm |
| Duty Cycle @ 40C |
45A @ 35% |
| Current Range (Amps) |
20 -45 |
| Input Current (Amps) |
20 |
| Inout Power kVA |
5.1 |
| Weight (Kg) |
9.2 |
Code: JP-45P
Supplier Code: JP-45P
E and M Code: JP-45PWILK
Price(Exc.VAT): £904.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Plasma Cutters
|
