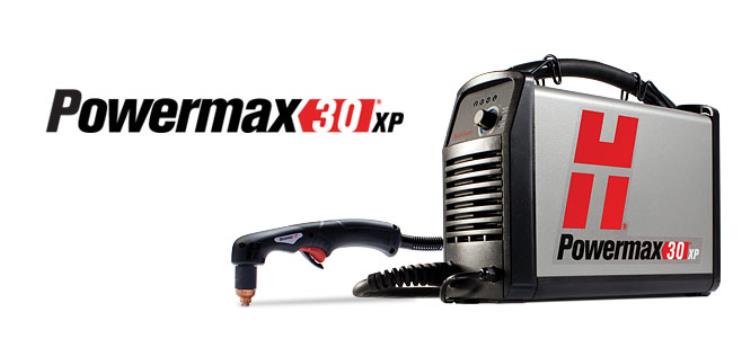

Hypertherm Powermax 30 XP Plasma Cutter
Hypertherm Powermax 30 XP Plasma Cutter

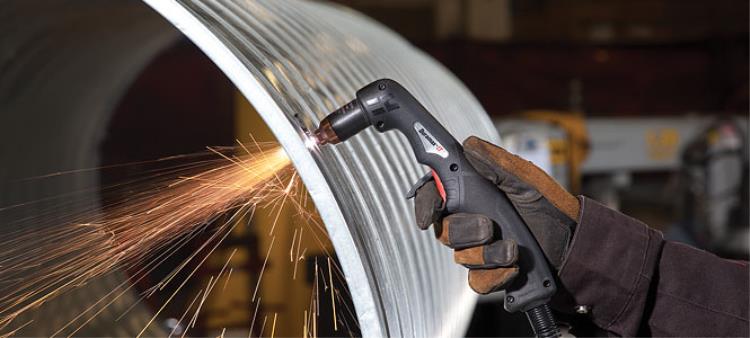

The Powermax30 XP is a highly portable, 30 A, handheld plasma cutting system appropriate for a wide range of applications. It uses air or nitrogen to cut electrically conductive metals, such as mild steel, stainless steel, or aluminum.
Cutting with 120 V input power
Use FineCut nozzle and deflector for cutting at 120 V input power. When operating at the maximum recommended output of 25 A, the cut capacities are:
- 6 mm (1/4") at 482 mm/min (19 ipm)
- 10 mm (3/8") at 203 mm/min (8 ipm)
- 12 mm (1/2") at 76 mm/min (3 ipm)

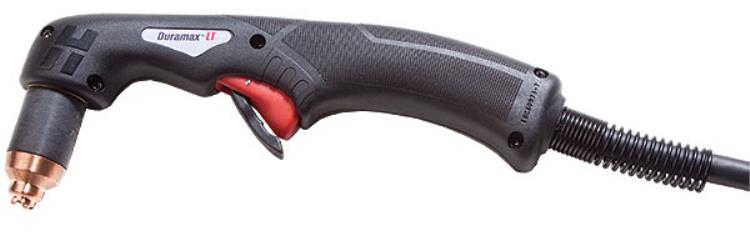

Duramax LT torch ™
- Designed to withstand impact and heat.
- Twice the consumable life* and 70% more efficient on average for lower cost of cutting
System includes
- Power supply, 4,5 m (15') Duramax LT hand torch with standard consumables, 4,5 m (15') work clamp
- 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA models)
- Operator and safety manuals
- Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut nozzle and 1 FineCut deflector
- Plastic carry case
- Carrying strap

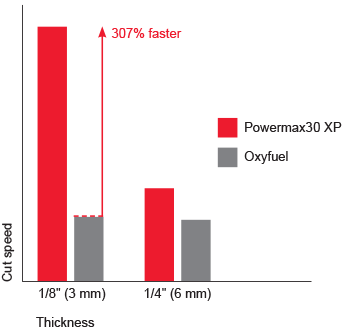

Relative cut performance on mild steel
Operating Data
| Capacity |
Thickness |
Cut speed |
| |
Cutting
|
| Recommended |
10 mm (3/8") |
500 mm/min (20 ipm) |
| |
12 mm (1/2") |
250 mm/min (10 ipm) |
| Severance |
16 mm (5/8") |
125 mm/min (5 ipm) |
Specification
| Input voltages |
120-240 V, 1-PH, 50/60 Hz |
| Input current @ 3.8 kW |
120-240 V, 1-PH, 25-18.8 A |
| Output current |
15-30 A |
| Rated output voltage |
125 VDC |
| Duty cycle @ 40°C (104°F) |
35%, 240 V
20%, 120 V |
| Open circuit voltage (OCV) |
256 VDC |
| Dimensions with handles |
356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H |
| Weight w/ 4,5 m (15') torch |
CSA: 9.7 kg (21.4 lbs)
CE, CCC: 9.5 kg (21 lbs) |
| Gas Supply |
Clean, dry, oil-free air or nitrogen |
Recommended gas inlet
flow rate / pressure |
113.3 l/min (4 scfm) at 5.5 bar (80 psi) |
| Input power cable length |
3 m (10') |
| Power supply type |
Inverter - IGBT |
| Engine drive requirement |
5.5 kW for full 30 A output |
| Certifications |
CSA-certified for use in the Americas and Asia, except China
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China. |
| Warranty |
Power supplies have a 3-year warranty and torches a 1-year warranty. |
Supplier Code: SupPart001
E and M Code: EAMPart001
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Courier (Yodel)- Standard Parcels £6.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Plasma Cutters
|
