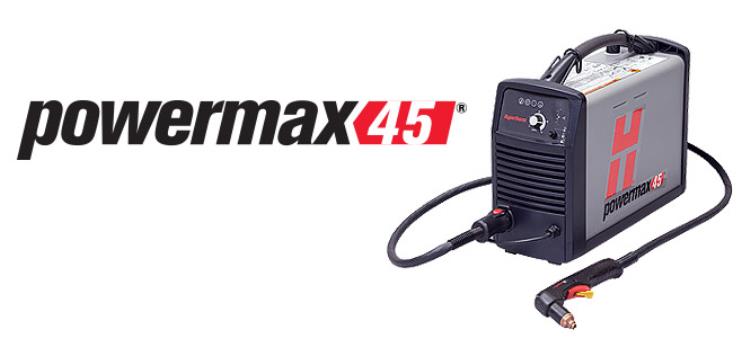

Hypertherm Powermax 45 Plasma Cutter
Hypertherm Powermax 45 Plasma Cutter
Professional-grade plasma metal cutting and gouging
system for handheld cutting 1/2".
Our best selling system, the Powermax45 is the most versatile and portable 1/2" (12 mm) machine on the market, with a broad set of application capabilities that make it a truly multi-purpose tool. The Powermax45 cuts or gouges faster, easier and better than any other product in its class.
Easy-to-use with versatile design
- Small size and light weight provides exceptional portability for a 1/2" rated cutting system.

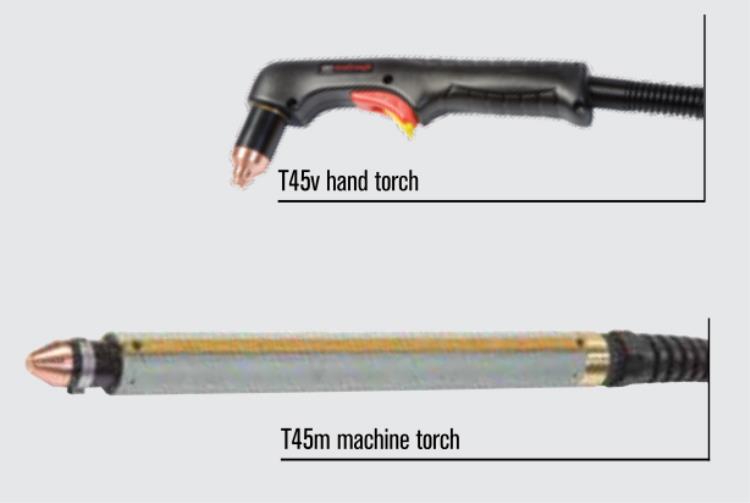

- Handheld and mechanized usage with CNC interface and FastConnect™ torch connection.
- Patented drag-cutting technology makes it easy to use – even for ?rst time operators.
Finish jobs faster
- Less edge preparation – patented consumables designs provide superior cut and gouge quality.
- Cut speeds 188% faster than oxyfuel on 1/4" mild stee
Rugged and reliable
- Hypertherm Certi?ed™ reliability ensures performance in the most demanding environment.
- Powercool™ design cools internal components more effectively for long system life and improved uptime.

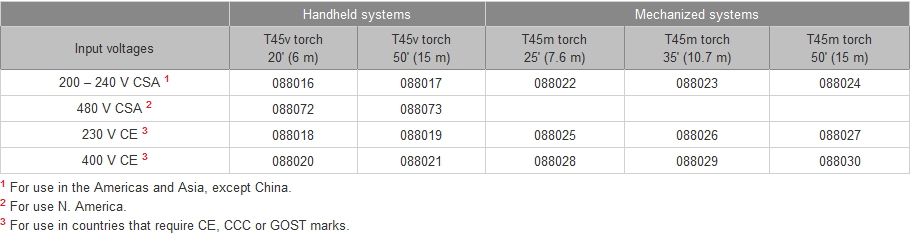

Standard configurations
Below are some of the most common system configurations which include a power supply, torch and work cable.
Custom configurations
Select power supply, torch, work cable and other components.

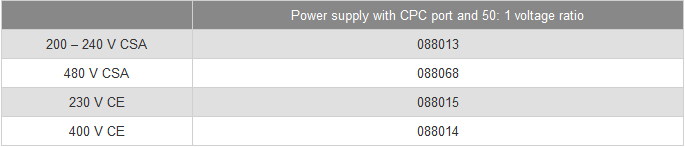

Power supply options

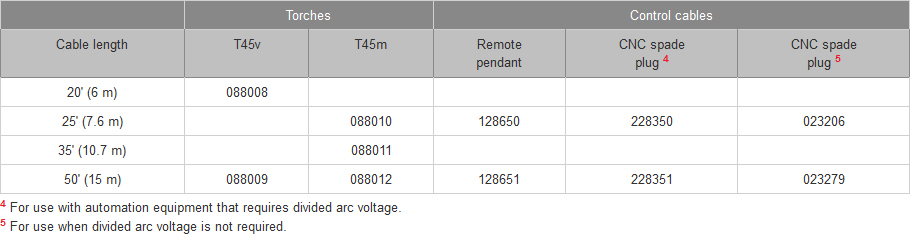

Component options
Operating data
| Capacity |
Thickness |
Cut speed |
| |
Cutting
|
| Recommended |
12 mm (1/2") |
500 mm/min (20 ipm) |
| |
19 mm (3/4") |
250 mm/min (10 ipm) |
| Severance (hand cutting) |
25 mm (1") |
125 mm/min (5 ipm) |
| Pierce * |
12 mm (1/2") |
|
| * Pierce rating for handheld use or with automatic torch height control |
| Capacity |
Metal removal rate |
Groove profile |
| |
Gouging
|
| Typical gouge |
2,8 kg/hr
(6.2 lbs/hr) |
3,3 mm D x 5,5 mm W
(0.13" D x 0.22" W) |

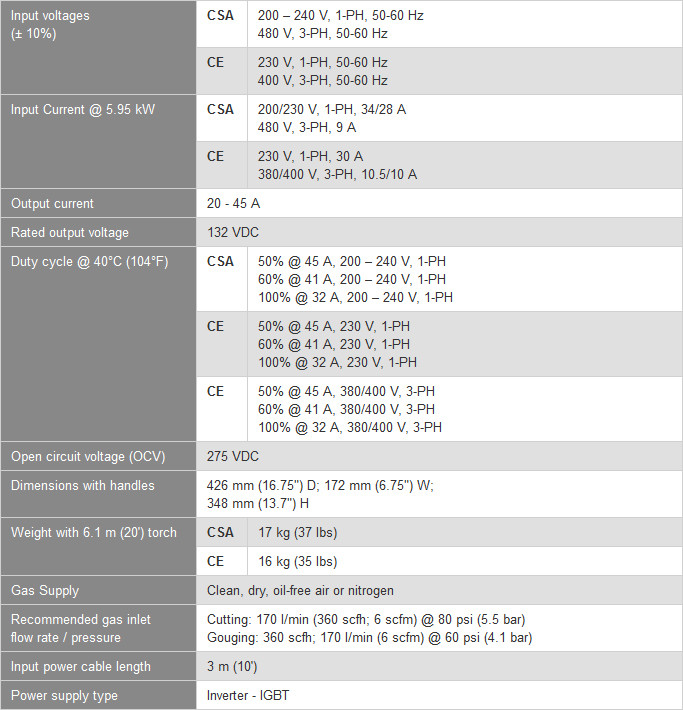

Specification

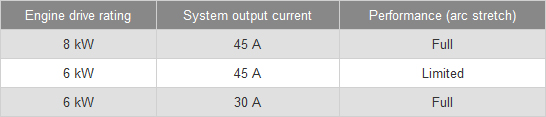

Engine-driven generator operation
Production Cut Chart

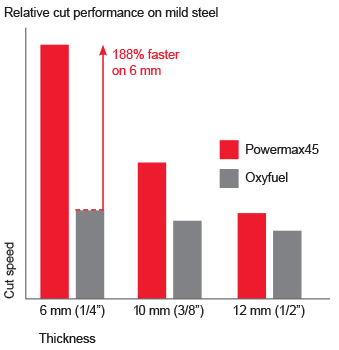

Relative cut performance on mild steel
Supplier Code: SupPart001
E and M Code: EAMPart001
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Courier (Yodel)- Standard Parcels £6.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Plasma Cutters
|
