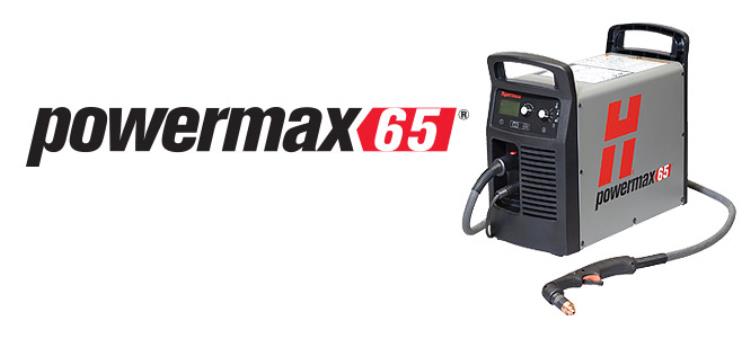

Hypertherm Powermax 65 Plasma Cutter
Hypertherm Powermax 65 Plasma Cutter
Offering the latest technological innovations, like Smart Sense™ technology to automatically adjust the gas pressure, the Powermax65 helps you do more than ever before. Seven Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job.
Professional-grade plasma metal cutting and gouging system for
handheld cutting 3/4" and mechanized piercing 5/8".

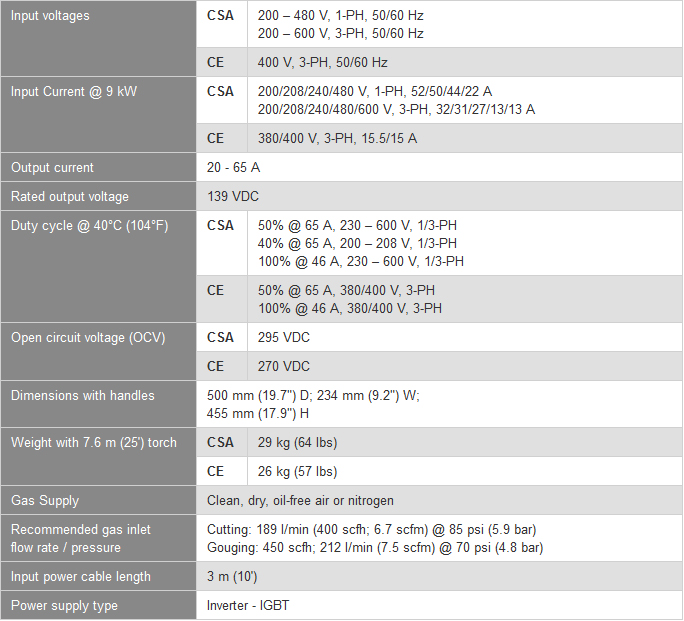

Specification

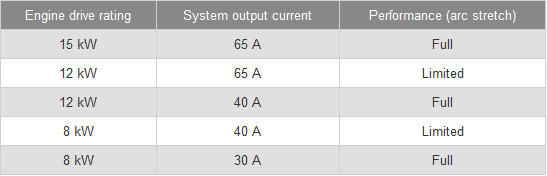

Engine-driven generator operation
Production cut chart

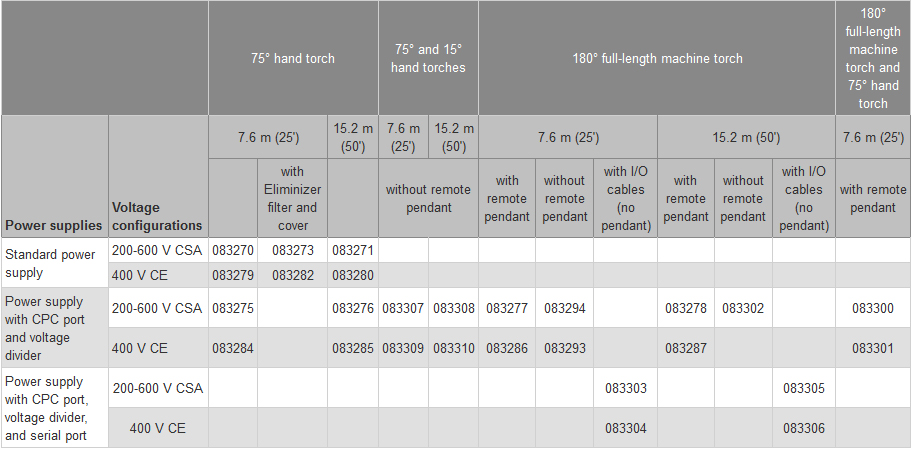

Standard configurations
Below are the standard system configurations, which include a power supply, torch and work cable.
Custom configurations
Select a power supply, torch, torch consumable kit, work cable and other components.

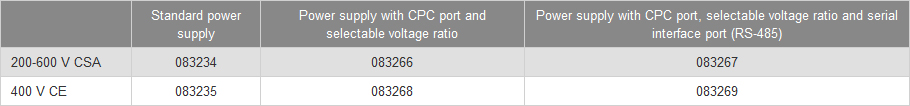

Power supply options
Starter kit consumable options
Duramax torch options

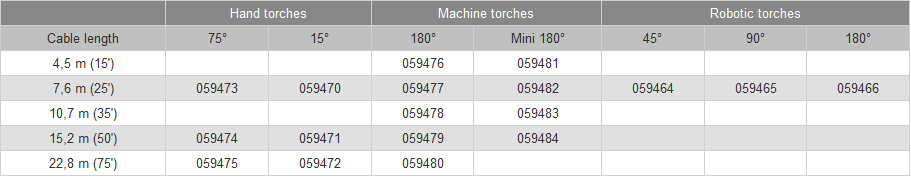

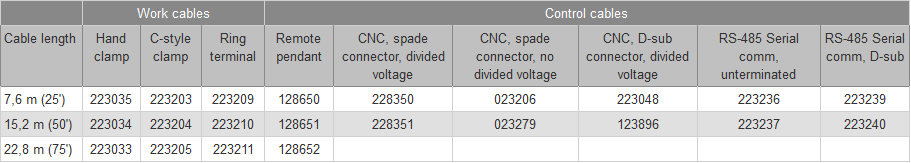

Cable options
Maximum productivity

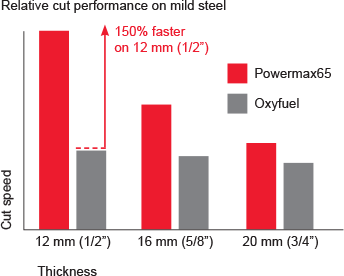

- Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 1/2" mild steel.
- Spend less time on grinding and edge preparation due to superior cut and gouge quality.
Easy-to-use for cutting and gouging
- No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
- Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
- Tackle different jobs with multiple, easy-to-use torch styles.
Low operating costs
- Reduce costs with long consumable life and more uptime.
- High power ef?ciency lowers energy consumption.
Built and tested to withstand the harshest conditions
- Duramax™ torches are designed for high-impact and heat resistance.
- SpringStart™ technology ensures consistent starting and a more reliable torch.
- Low maintenance for maximum uptime.
Operating data
| Capacity |
Thickness |
Cut speed |
| |
Cutting
|
| Recommended |
20 mm (3/4") |
500 mm/min (20 ipm) |
| |
25 mm (1") |
250 mm/min (10 ipm) |
| Severance (hand cutting) |
32 mm (1-1/4") |
125 mm/min (5 ipm) |
| Pierce * |
16 mm (5/8") |
|
| * Pierce rating for handheld use or with automatic torch height control |
| Capacity |
Metal removal rate |
Groove profile |
| |
Gouging
|
| Typical gouge |
4,8 kg/hr
(10.7 lbs/hr) |
3,5 mm D x 6,6 mm W
(0.14" D x 0.26" W) |
Duramax™ torches
Duramax torches are designed for durability and reliability. Spring Start™ technology in the electrode eliminates moving parts in the torch and ensures consistent reliable starting. Electrode end-of-life detection in the power supply combines with long consumable life to reduce operating costs.
The Duramax torch series includes torches for handheld and mechanized cutting and gouging, and robotic cutting.
Duramax torches are compatible with the Powermax105, 85, and 65 systems. Duramax retrofit torches are also available for legacy systems.
See Hypertherm Torch Upgrades Page

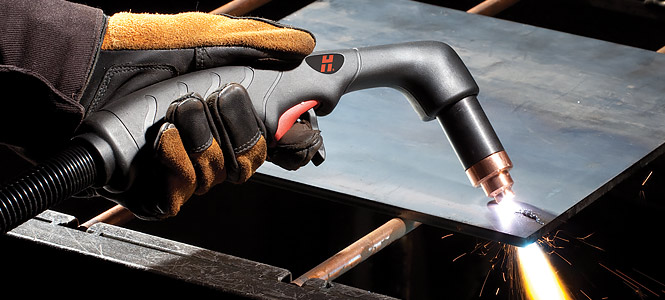

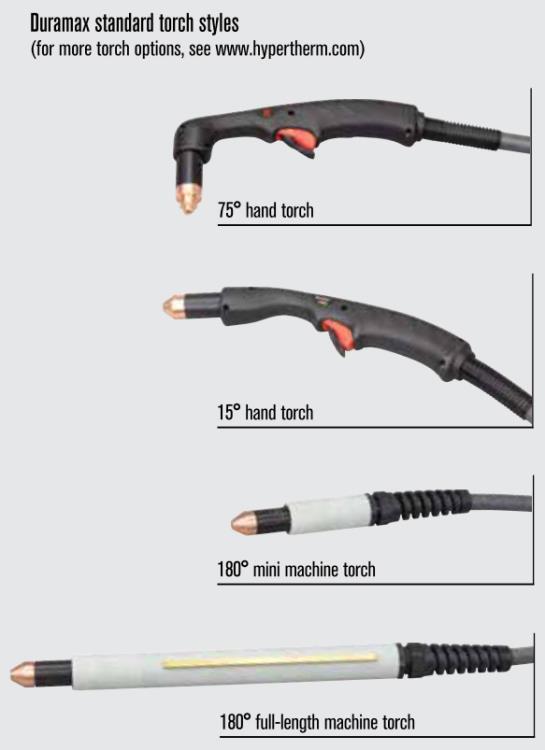

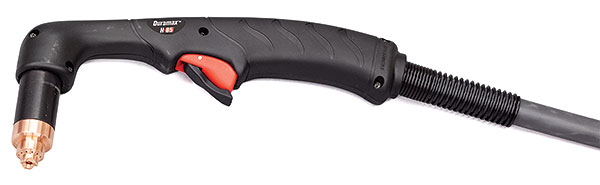

75° hand torch

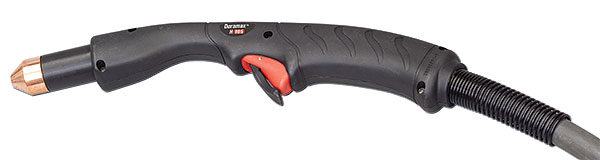

15° hand torch

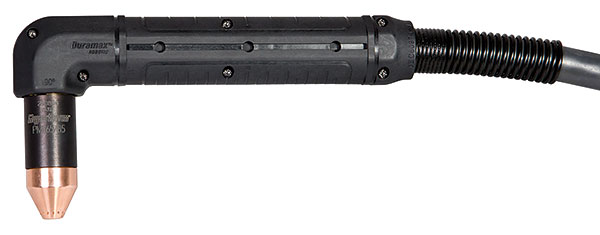

90° robotic torch

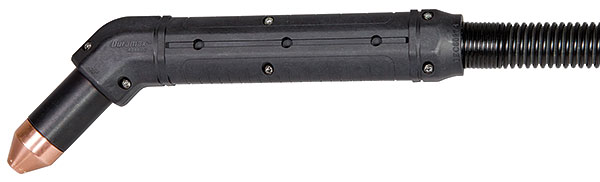

45° robotic torch

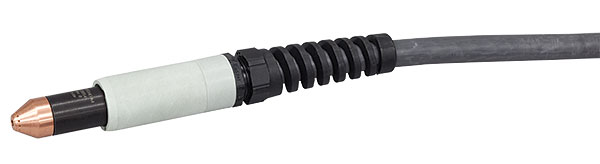

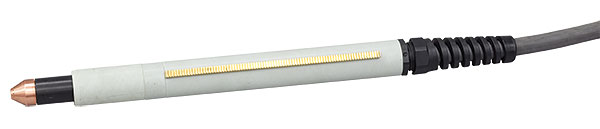

180° full-length machine torch
180° mini machine torch

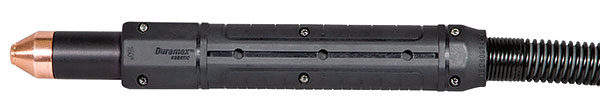

180° robotic torch
Supplier Code: SupPart001
E and M Code: EAMPart001
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Courier (Yodel)- Standard Parcels £6.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Plasma Cutters
|
