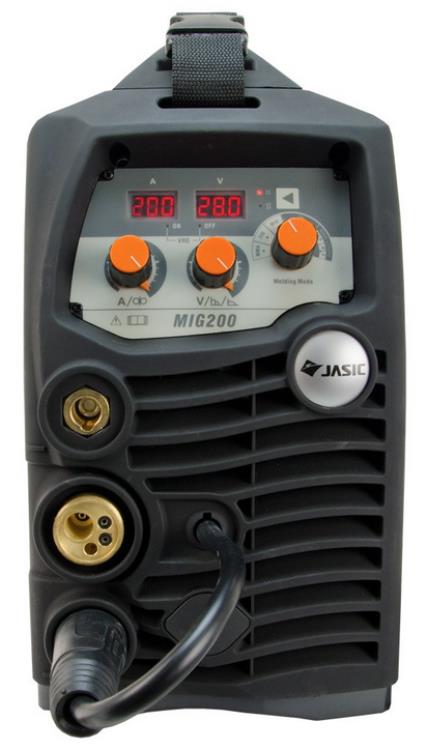

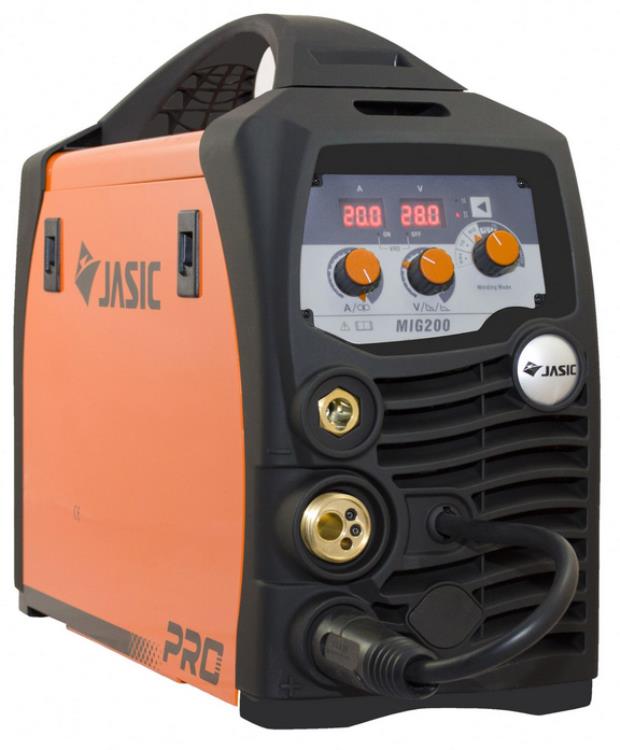

JASIC PRO MIG 200 Synergic Multi Process Inverter JM-200CS
JASIC PRO MIG 200 Synergic Multi Process Inverter
Features
- Synergic control
- Single PCB compact welding inverter
- IGBT MIG/MMA/Lift TIG Multi Process
- synergic Inverter for the professional user
- Digital amp and voltmeter
- Stable arc and reliable performance
- Suitable for 0.6 to 1.0mm wires
- Compact size, lightweight
- and modern design
- Burn back control
- Ideal for production, site work & maintenance

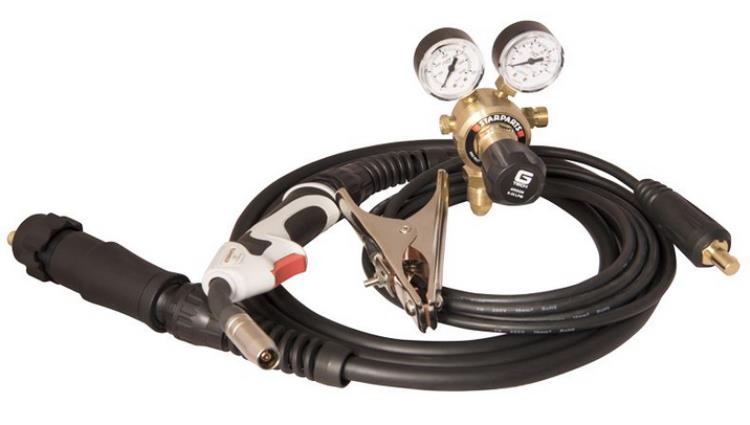

- Includes MIG torch, gas regulator, work return lead & clamp
- High quality tactile rubber finish to mouldings and handle
- 5 year warranty
Technical Data
- Input Voltage: AC 230V - 50/60 Hz
- Input Power (kVA): 9.4
- Voltage Range (V): 11-28
- Current Range (A): 10 - 200
- No-Load Voltage (V): 53
- Duty Cycle: @ 40°C 200A @ 35%
- Wire Spool Size: ø 200mm
- Efficiency (%): 85
- Power Factor: 0.7
- Protection/Insulation Class: IP21S/F
- Dimensions (mm): 485 x 185 x 370
- Weight (Kg): 12.8
MMA
After connecting the welding leads as detailed you will needto switch the power switch on the back panel to “ON”Select MMA by switching to the MMA welding mode. Thereis voltage output at both output terminals. Set the amperage on the machine suitable for the electrode being used. Please see below a guide to amperages required. Ensure you check that you have the electrode polarity correct.
MIG/MAG
- Connect the MIG torch leads as detailed above. Ensure that a suitable inert gas supply is connected.
- Switch the power switch on the back panel to “ON”, the machine is started with the power LED on and the fan working.
- Switch the MMA/MIG switch to MIG mode.
- Open the gas valve of the cylinder, and adjust the gas regulator to obtain the desired flow rate.
- Adjust the “voltage control knob in MIG” and “wire feed speed control knob in MIG” on the front panel of the machine to get the correct welding voltage and welding current.
- Operate the torch trigger, and welding can be carried out.

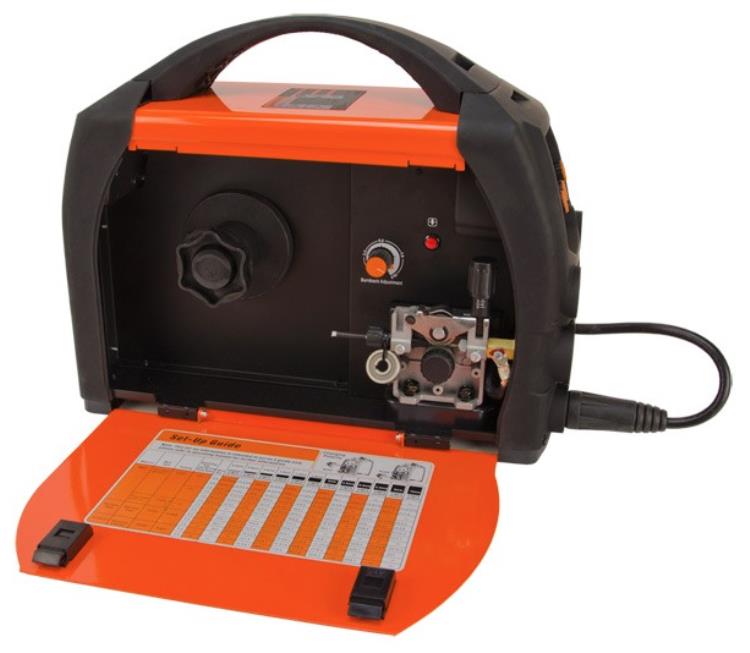

- Where required adjust the burn-back time potentiometer (above the feed unit inside the machine) to get the proper electrode stick-out.
- One second after the arc stops, the gas supply will be cut off.
Gas less MIG
The operation method is the same to MIG operation except
that there are no gas options.
Code: JM-200CS
Supplier Code: JM-200CS
E and M Code: JM-200CSWILK
Price(Exc.VAT): £0.00
Quantity Available: 0
Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Welders
|
|
|
|
|
|
|
|
